RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 169

Sep 22, 2011

For example, figures 4-1 to 4-6 show block diagrams of port 0 for 128-pin products when PIOR = 00H.

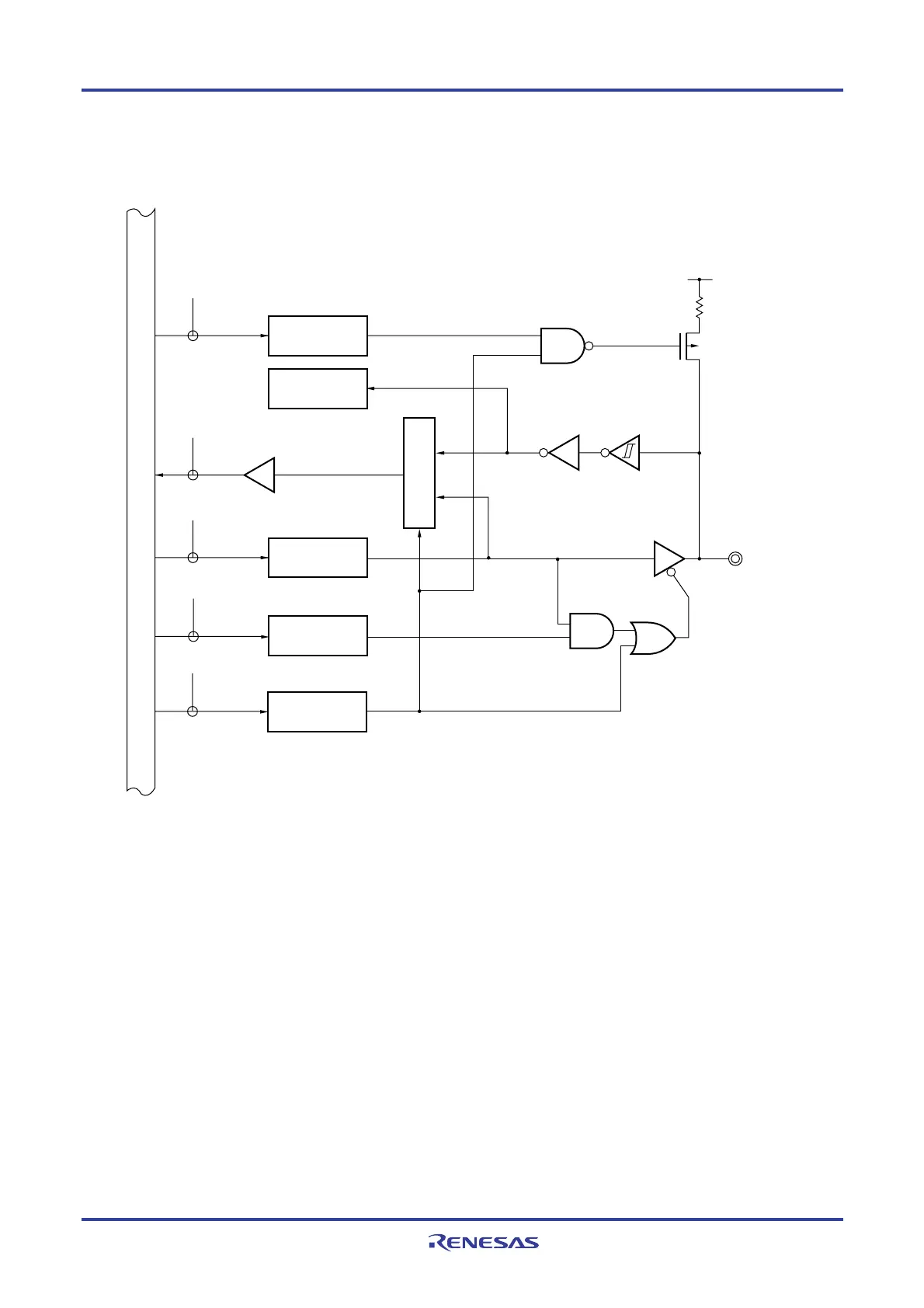

Figure 4-1. Block Diagram of P00

Internal bus

Output latch

(P00)

Alternate

function

P00/TI00

PORT

PU00

P-ch

PU0

PM0

POM00

POM0

POM

PM00

Selector

P0: Port register 0

PU0: Pull-up resistor option register 0

PM0: Port mode register 0

POM0: Port output mode register 0

RD: Read signal

WR××: Write signal

<R>
