RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 191

Sep 22, 2011

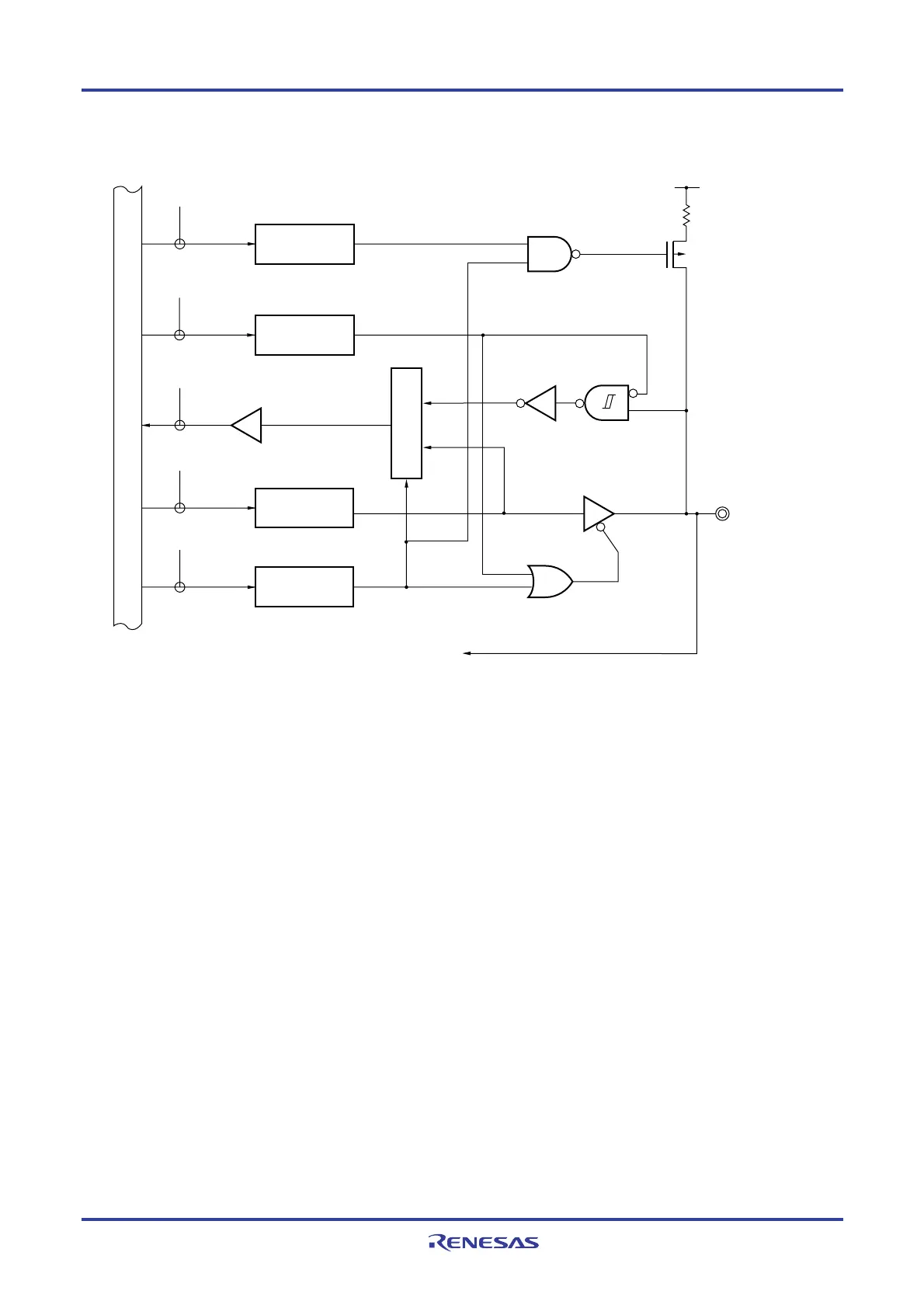

Figure 4-19. Block Diagram of P35 to P37

P35/ANI23 to

P37/ANI21

PORT

PU35 to PU37

PM35 to PM37

P-ch

PU3

PM3

A/D converter

PMC

PMC3

PMC35 to PMC37

Output latch

(P35 to P37)

Selector

Internal bus

P3: Port register 3

PU3: Pull-up resistor option register 3

PM3: Port mode register 3

PMC3: Port mode controlregister 3

RD: Read signal

WR××: Write signal
