RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 206

Sep 22, 2011

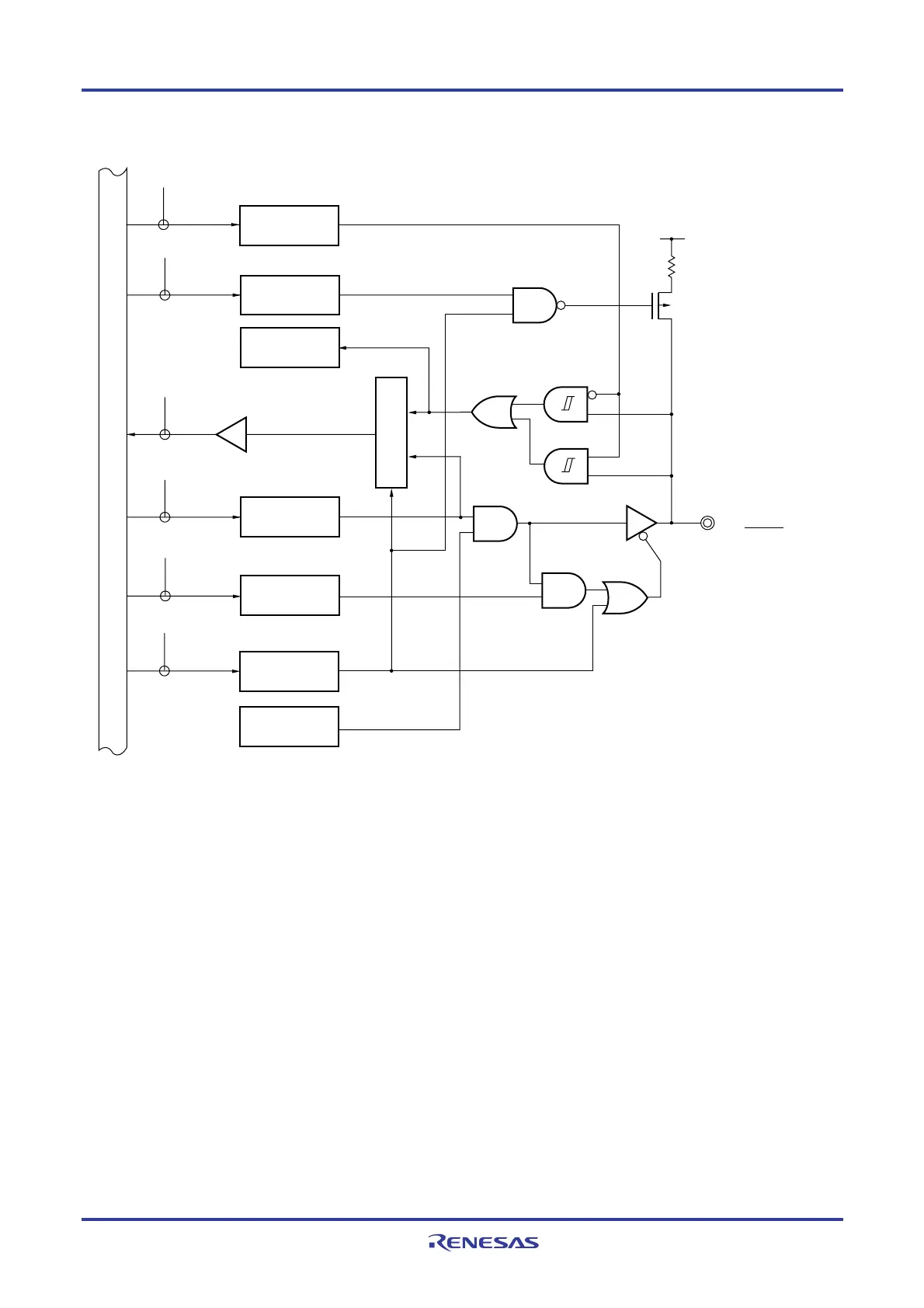

Figure 4-30. Block Diagram of P53, P54

P54/SCK31/SCL31

PORT

PU53, PU54

EVDD

P-ch

PU5

WRPM

PM5

POM53, POM54

POM5

WRPOM

PM53, PM54

CMOS

TTL

PIM5

PIM53, PIM54

WRPIM

Output latch

(P53, P54)

Selector

Alternate

function

Alternate

function

Internal bus

P53/SI31/SDA31,

P5: Port register 5

PU5: Pull-up resistor option register 5

PM5: Port mode register 5

PIM5: Port input mode register 5

POM5: Port output mode register 5

RD: Read signal

WR××: Write signal
