RL78/G13 CHAPTER 6 TIMER ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 365
Sep 22, 2011
(a) Start timing in interval timer mode
<1> Operation is enabled (TEmn = 1) by writing 1 to the TSmn bit. Timer count register mn (TCRmn) holds the
initial value until count clock generation.
<2> A start trigger is generated at the first count clock after operation is enabled.
<3> When the MDmn0 bit is set to 1, INTTMmn is generated by the start trigger.
<4> By the first count clock after the operation enable, the value of timer data register mn (TDRmn) is loaded
to the TCRmn register and counting starts in the interval timer mode.
<5> When the TCRmn register counts down and its count value is 0000H, INTTMmn is generated and the
value of timer data register mn (TDRmn) is loaded to the TCRmn register and counting keeps on.

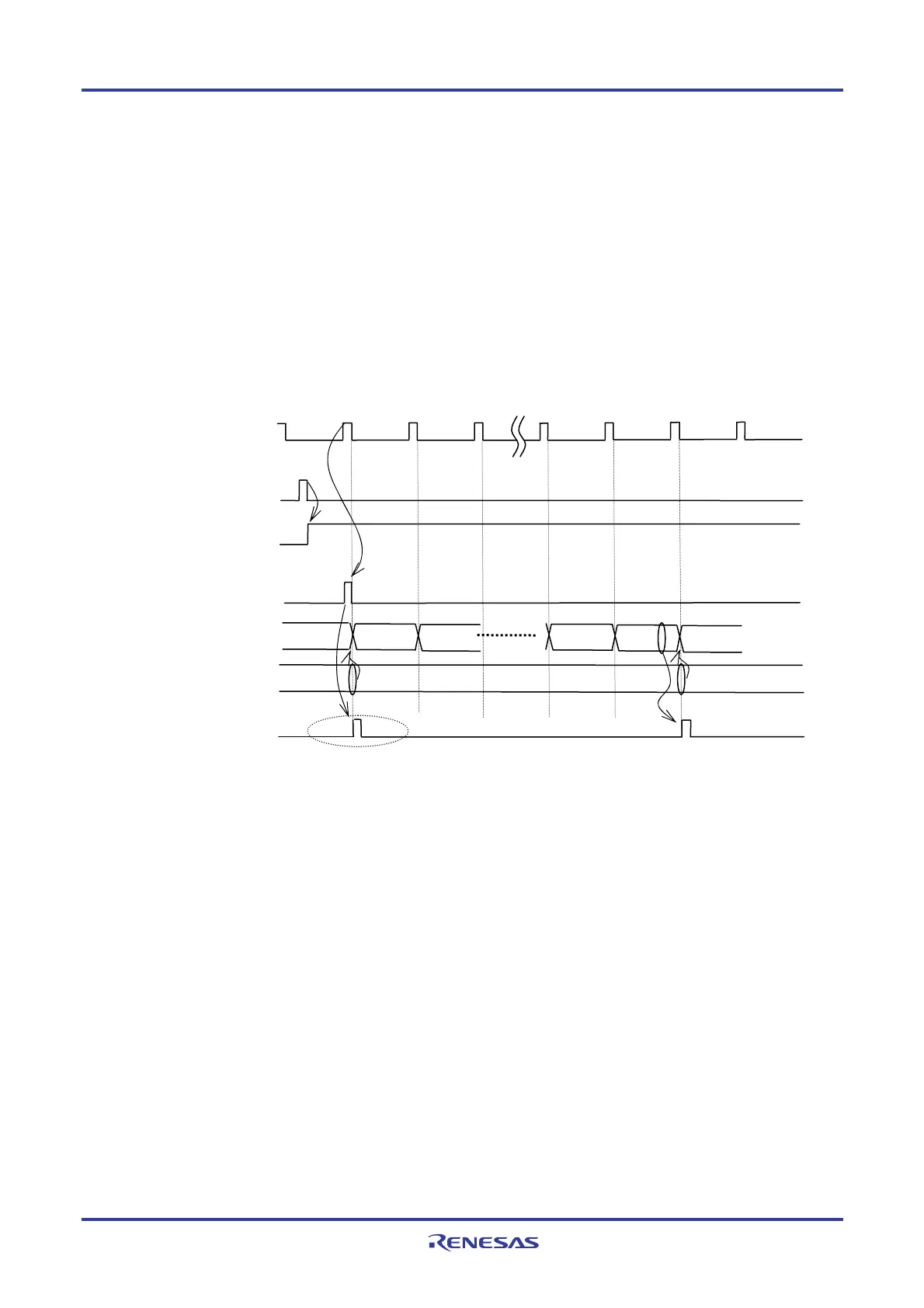

Figure 6-23. Start Timing (In Interval Timer Mode)
Remark f
MCK, the start trigger detection signal, and INTTMmn become active between one clock in
synchronization with f
CLK.
Caution In the first cycle operation of count clock after writing the TSmn bit, an error at a maximum of one
clock is generated since count start delays until count clock has been generated. When the
information on count start timing is necessary, an interrupt can be generated at count start by
setting MDmn0 = 1.
fMC
K
(fTCLK)
m
TSmn(Write)
TEmn
Start trigge
r
detection signal
TCRmn
Initial
value
m
TDRmn
INTTMmn
When MDmn0 = 1 setting
<1>
<3>
<4>
m−1
0000
m
0001
<2>
<5>
