RL78/G13 CHAPTER 6 TIMER ARRAY UNIT

R01UH0146EJ0100 Rev.1.00 377

Sep 22, 2011

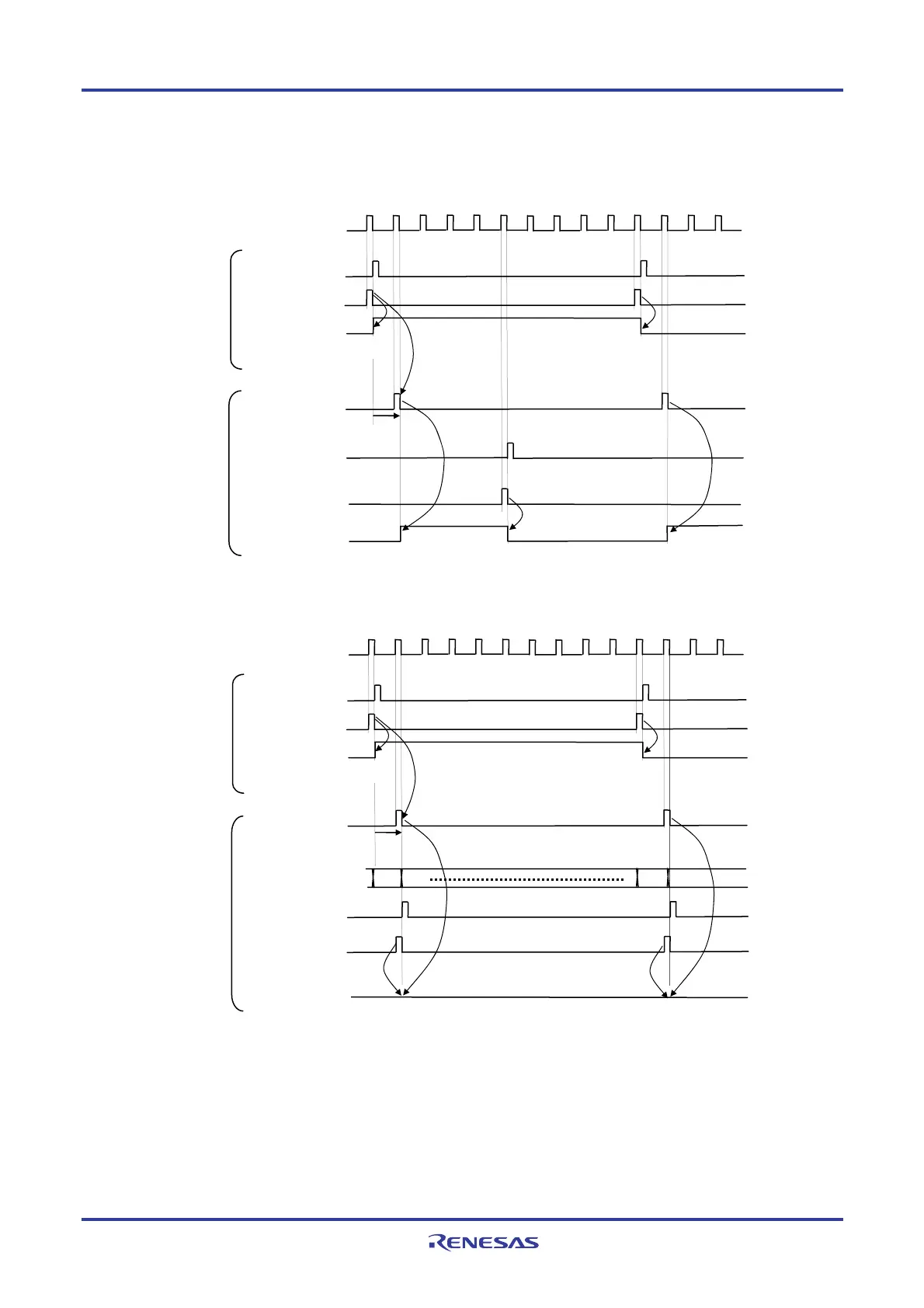

Figure 6-33. Set/Reset Timing Operating Statuses

(1) Basic operation timing

(2) Operation timing when 0 % duty

Remarks 1. Internal reset signal: TOmn pin reset/toggle signal

Internal set signal: TOmn pin set signal

2. m: Unit number (m = 0, 1)

n: Channel number (n = 0 to 7)

n = 0 to 7 (n = 0, 2, 4, 6 for master channel)

p: Slave channel number

n < p ≤ 7

TOmn pin/

INTTMmp

fTCLK

INTTMmn

Internal reset

signal

Internal set

signal

Internal reset

signal

TOmp pin/

TOmp

Master

channel

Slave

channel

1 clock delay

Toggle

Set

Reset

Reset has priority.

Reset

Reset has priority.

TCRmp

0000

0001

0000

0001

TOmn pin/

TOmn

INTTMmp

fTCLK

INTTMmn

Internal reset

signal

Internal reset

signal

TOmp pin/

TOmp

Master

channel

Slave

channel

1 clock delay

Toggle Toggle

Set

Reset

Internal set

signal
