RL78/G13 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0146EJ0100 Rev.1.00 647

Sep 22, 2011

(3) Processing flow (in single-transmission mode)

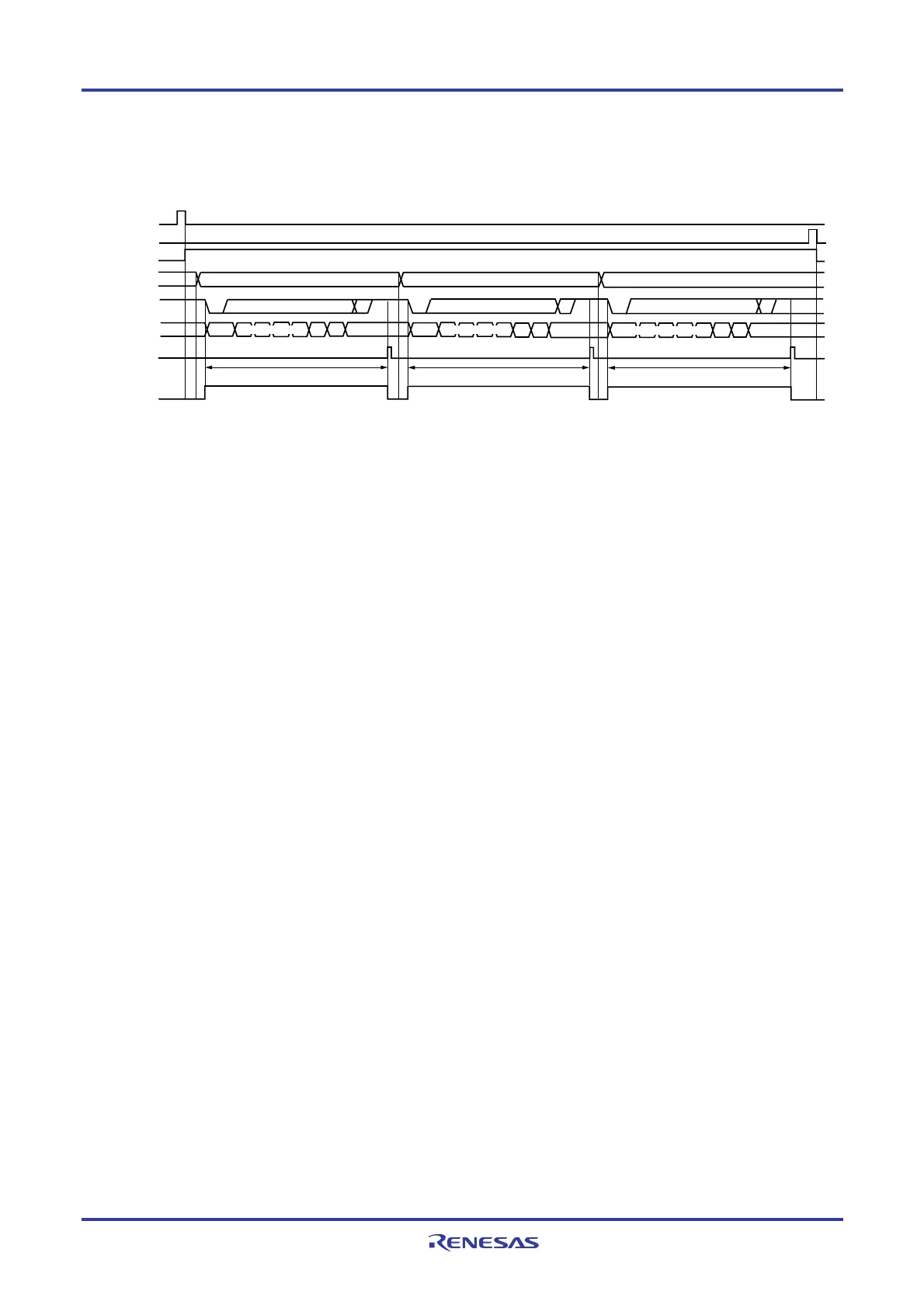

Figure 12-81. Timing Chart of UART Transmission (in Single-Transmission Mode)

SSmn

SEmn

SDRmn

TxDq pin

Shift

INTSTq

TSFmn

ST ST

STmn

Data transmission (7-bit length)

Data transmission (7-bit length) Data transmission (7-bit length)

Transmit data 1

Transmit data 2

Transmit data 3

Transmit data 2

Transmit data 1

Shift operation

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 2), q: UART number (q = 0 to 3)

mn = 00, 02, 10, 12
