RL78/G13 CHAPTER 13 SERIAL INTERFACE IICA
R01UH0146EJ0100 Rev.1.00 734
Sep 22, 2011

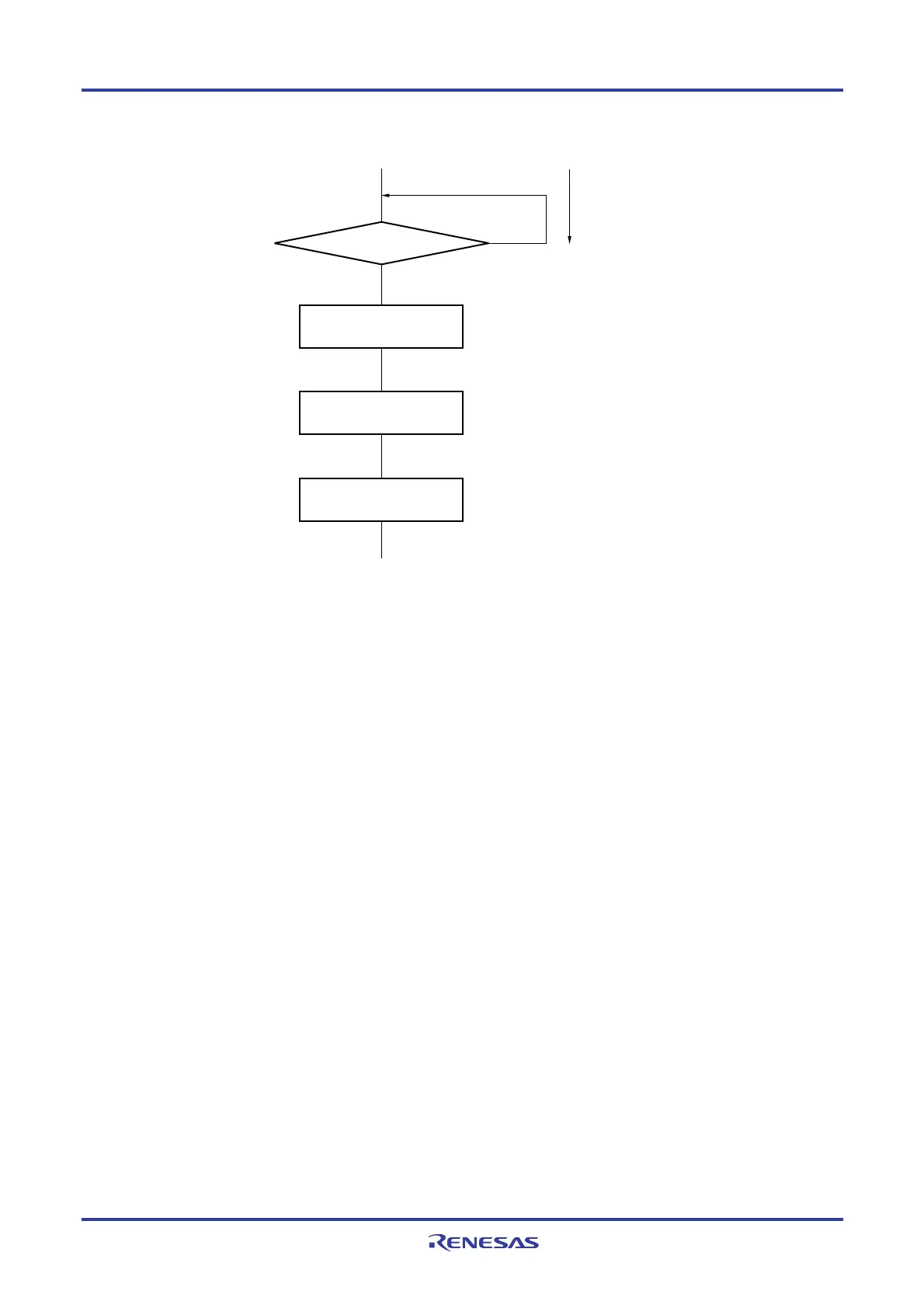

Figure 13-23. Flow When Setting WUP0 = 0 upon Address Match (Including Extension Code Reception)
Waits for 5 clocks.
Executes processing corresponding to the operation to be executed
after checking the operation state of serial interface IICA.
STOP mode state
No
Yes
WUP0 = 0
Wait
Reading IICS0
INTIICA0 = 1?
Use the following flows to perform the processing to release the STOP mode other than by an interrupt request
(INTIICA0) generated from serial interface IICA.
• Master device operation: Flow shown in Figure 13-24
• Slave device operation: Same as the flow in Figure 13-23
To Next Page
