RL78/G13 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0146EJ0100 Rev.1.00 761

Sep 22, 2011

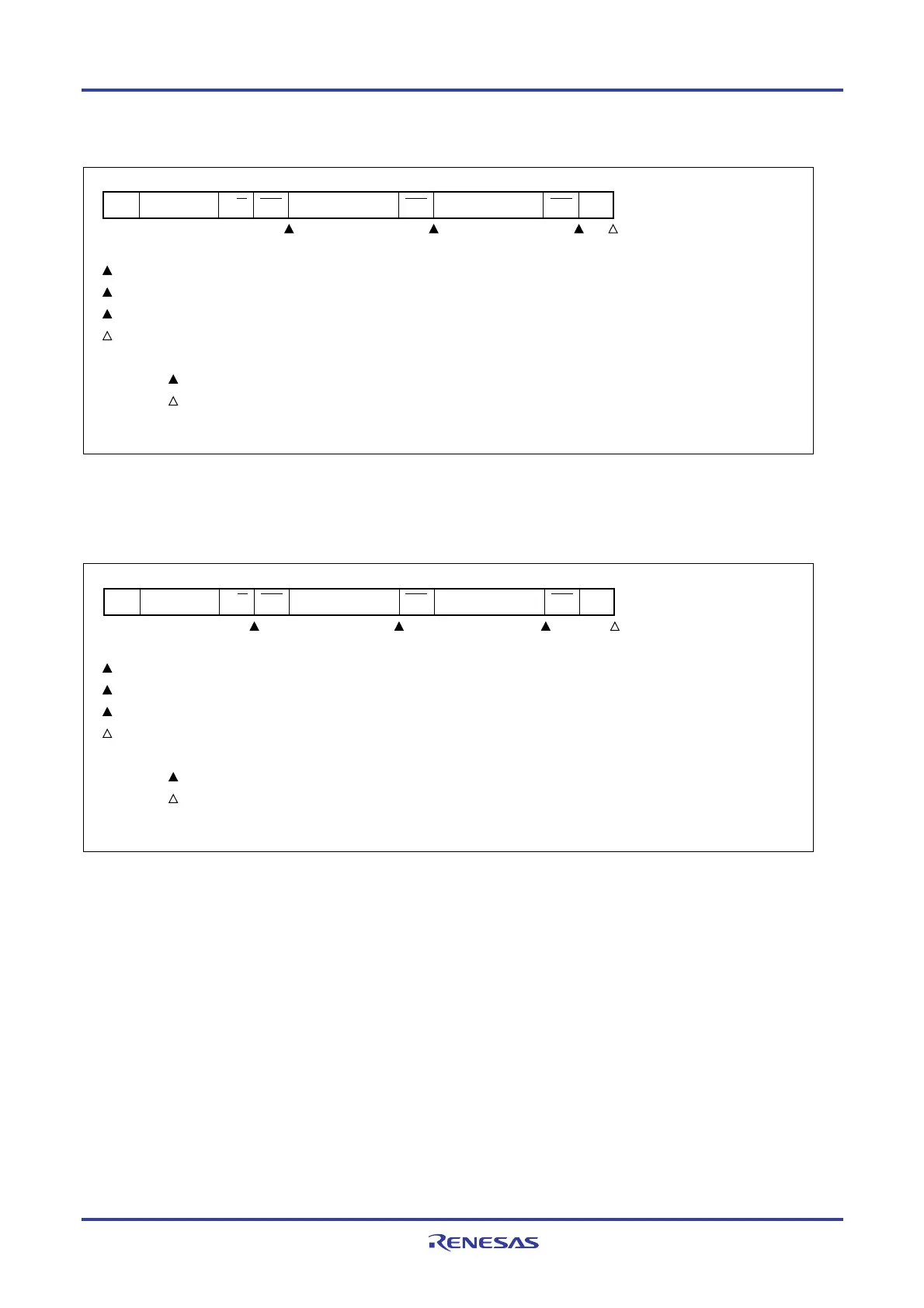

(ii) When WTIM0 = 1

ST AD6 to AD0 R/W ACK D7 to D0 D7 to D0ACK ACK SP

3 4 2 1

1: IICS0 = 0101×110B

2: IICS0 = 0001×100B

3: IICS0 = 0001××00B

4: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(b) When arbitration loss occurs during transmission of extension code

(i) When WTIM0 = 0

ST AD6 to AD0 R/W ACK D7 to D0 D7 to D0ACK ACK SP

3 4 2 1

1: IICS0 = 0110×010B

2: IICS0 = 0010×000B

3: IICS0 = 0010×000B

4: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care
