RL78/G13 CHAPTER 16 INTERRUPT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 828

Sep 22, 2011

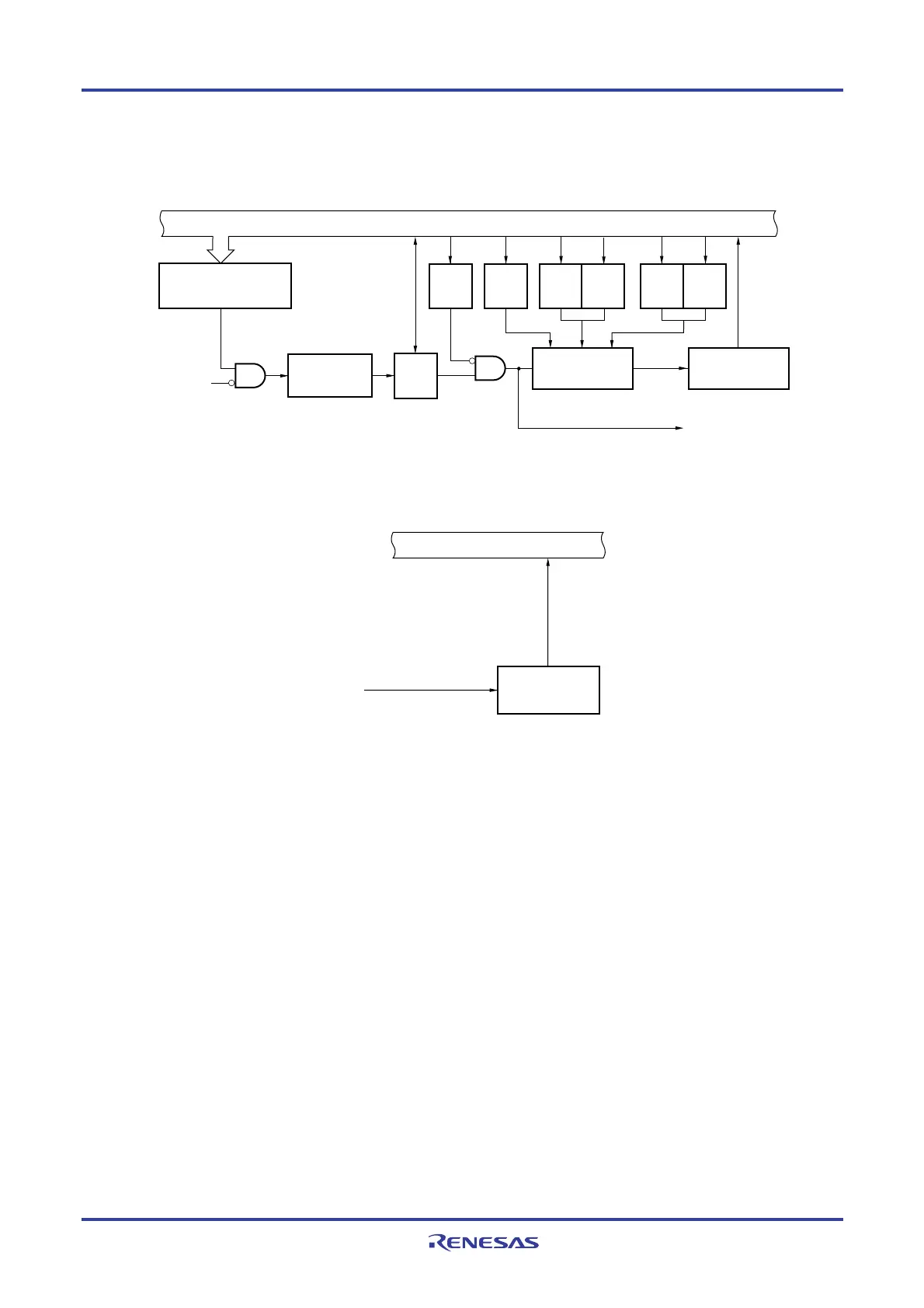

Figure 16-1. Basic Configuration of Interrupt Function (2/2)

KRMn

IE PR1 ISP1

PR0

ISP0

Internal bus

KRn pin input

Priority controller

Vector table

address generator

Standby release

signal

Key

interrupt

detector

Key return mode

(D) Software interrupt

Vector table

address generator

Internal bus

Interrupt

request

IF: Interrupt request flag

IE: Interrupt enable flag

ISP0: In-service priority flag 0

ISP1: In-service priority flag 1

MK: Interrupt mask flag

PR0: Priority specification flag 0

PR1: Priority specification flag 1

Remark 40, 44-pin: n = 0 to 4

48-pin: n = 0 to 5

52, 64, 80, 100, 128-pin: n = 0 to 7
