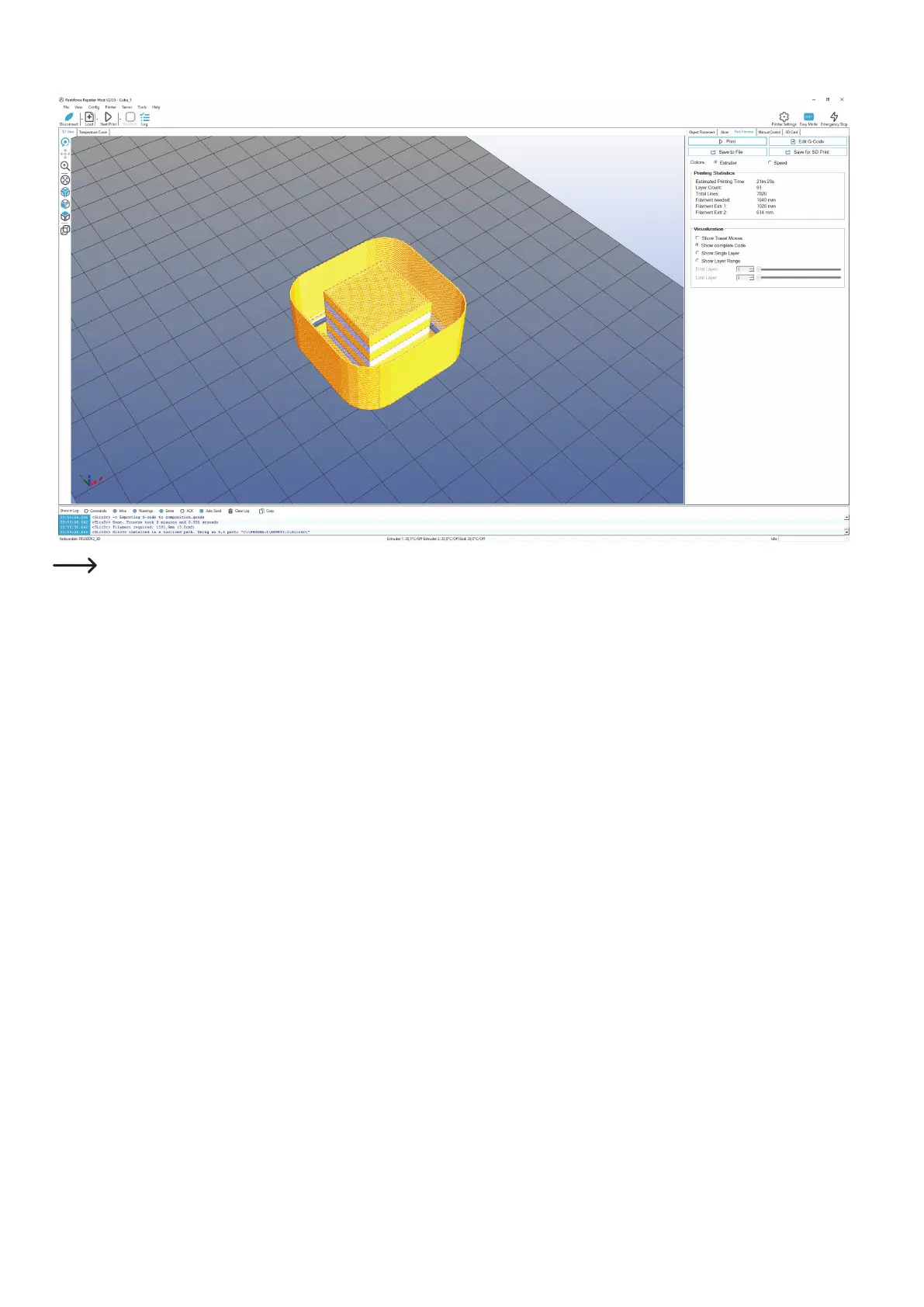

ThiscubeisalsoverysuitableforsettingtheextruderoffsetforXandY.Youcanndthefunctions"Extruder Offset X" and "Ex-

truder Offset Y" in the menu, under "Conguration" - "General".

 Thissettingcorrectsthedistancesofthetwoextruders.Xcorrectsthedistancebetweenthetwoextruders,i.e.whentheprinted

objectisoffsettooneside.Ycorrectsthedistancewhentheextrudersareoffsetbackwardsorforwards,becauseonepartofthe

cube is too far at the front and the other too far at the back.

Important! The reference extruder is always the left one (extruder 0). See chapter "19. c) Fine adjustment of the two extruders" in

these operating instructions.
