• StarttheArduino

software.

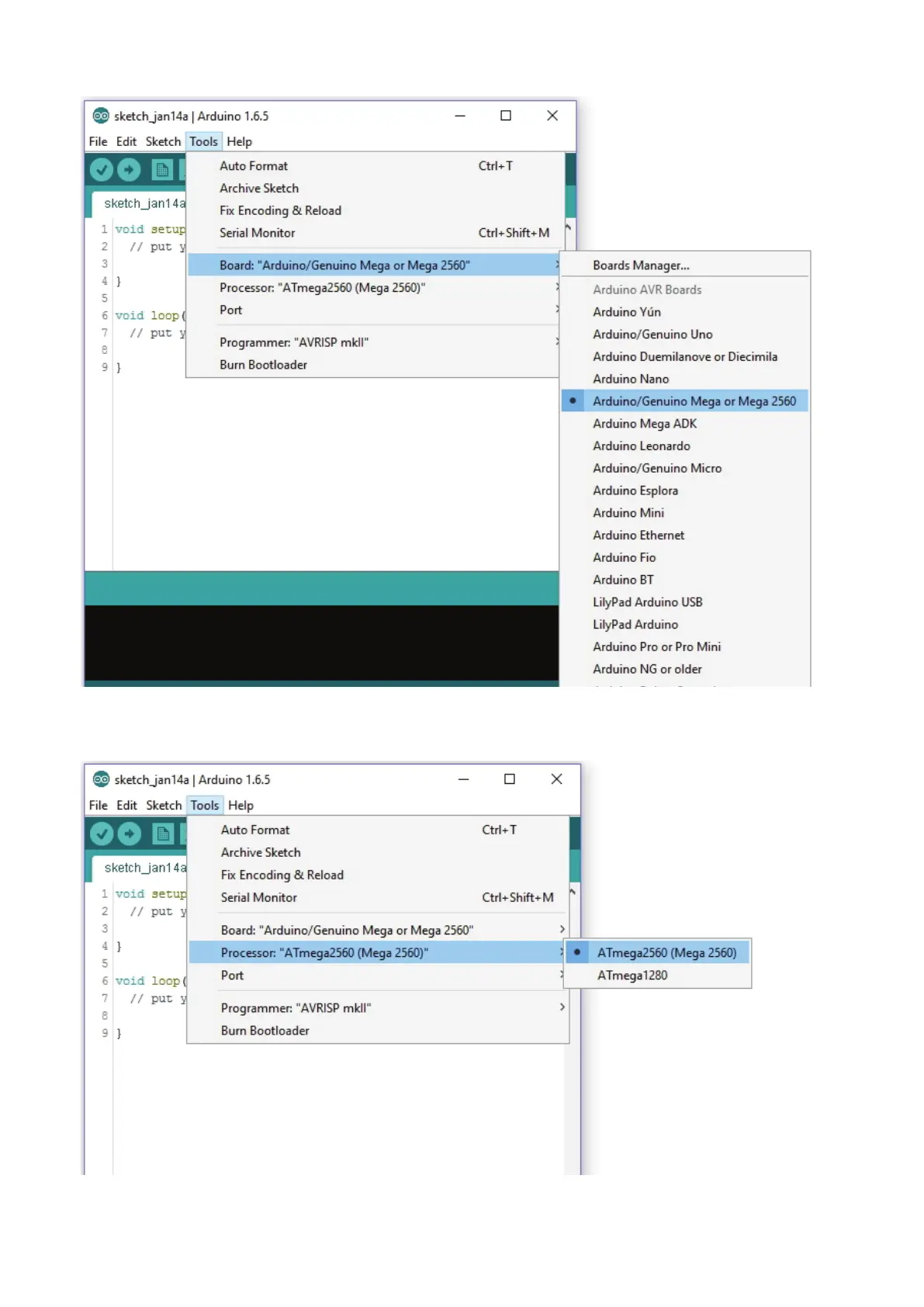

• Inthemenu"Tools" (1), select option "Board" (2) and set the type "Arduino/Genuino Mega or Mega 2560" (3).

• Inthemenu"Tools" (1), select option "Processor" (2) and set the type "ATmega2560 (Mega 2560)" (3).
