11 Mounting and Installation
11.1 Mounting

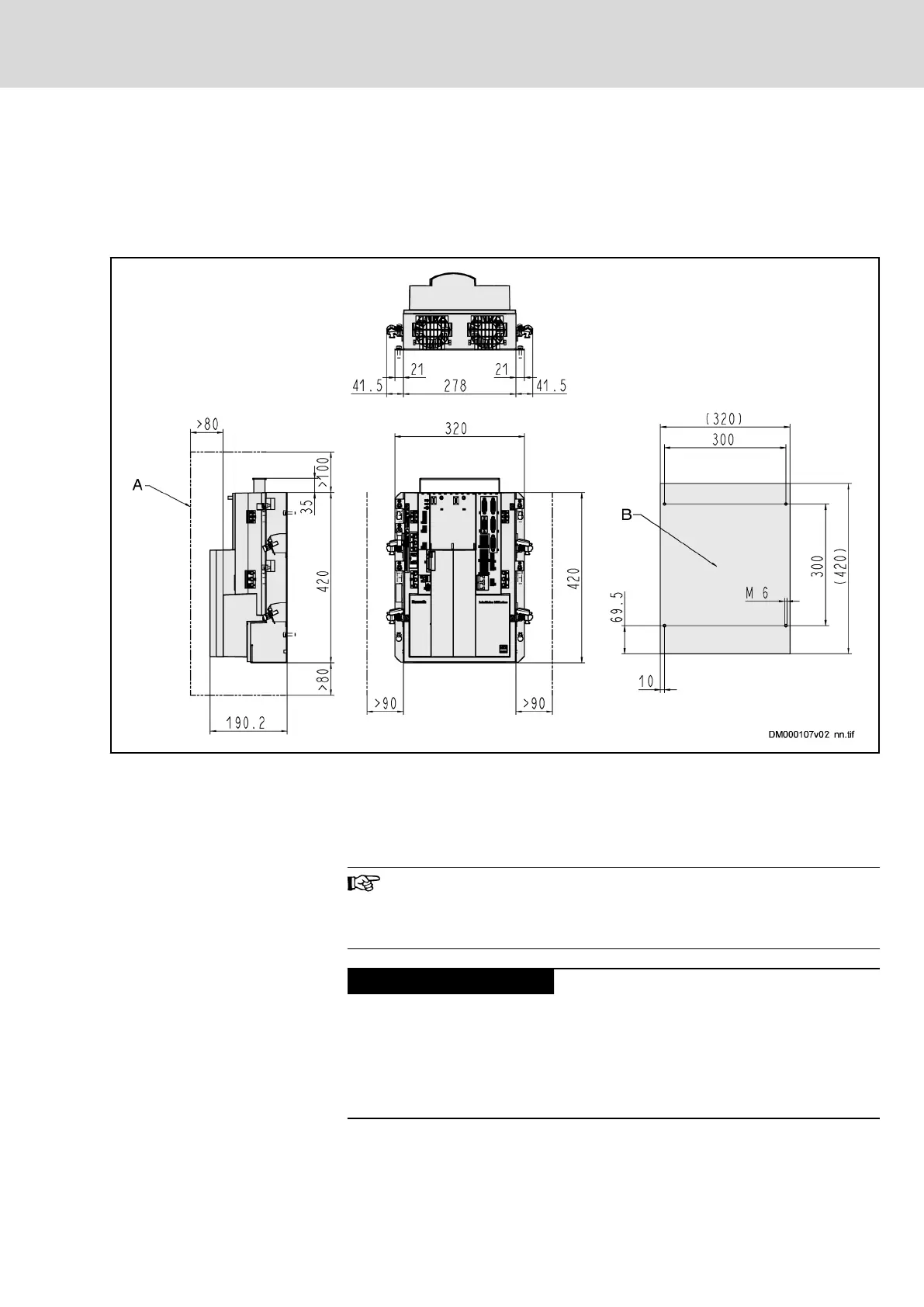

11.1.1 Dimensional Drawing
A Minimum mounting clearance
B Boring dimensions
Fig.11-1: Dimensional Drawing HCQ02.1E-W0025-A-03 and HCT02.1E-
W0025-A-03
11.1.2 Distances
The specified horizontal minimum distance at the device refers to
the distance to the control cabinet wall and not to the distance to
neighboring devices. It is not necessary to comply with a mini‐
mum distance to neighboring devices.
Property damage due to temperatures higher
than 105 ℃!
Observe the indicated minimum distances!
Above the devices there may only be such materials which
● are not combustible
● are insensitive to the occurring high temperatures
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 99/145
Mounting and Installation
