Compatibility 100Base-TX according to IEEE 802.3u
Recommended cable type ● According to CAT5e; type of shield ITP (Industrial Twisted Pair)
● Ready-made cables which can be ordered:
– RKB0011
Long cables (no more than 100 m) to connect the drive system to the
higher-level control unit or remoter communication users.
Minimum bending radius:
– 48.75 mm if laid flexibly
– 32.50 mm if laid permanently
Order code for a 30 m long cable: RKB0011/030,0
– RKB0013
Short cables to connect devices arranged side by side in the control cabi‐
net.
4 lengths available: 0.19 m; 0.25 m; 0.35 m; 0.55 m
Order code for a 0.55 m long cable: RKB0013/00,55
Minimum bending radius: 30.75 mm
Fig.6-19: Function, Pin Assignment, Properties
H10, H11, H12, H13
Diagnostic LEDs:
See index entry "Diagnostic displays"

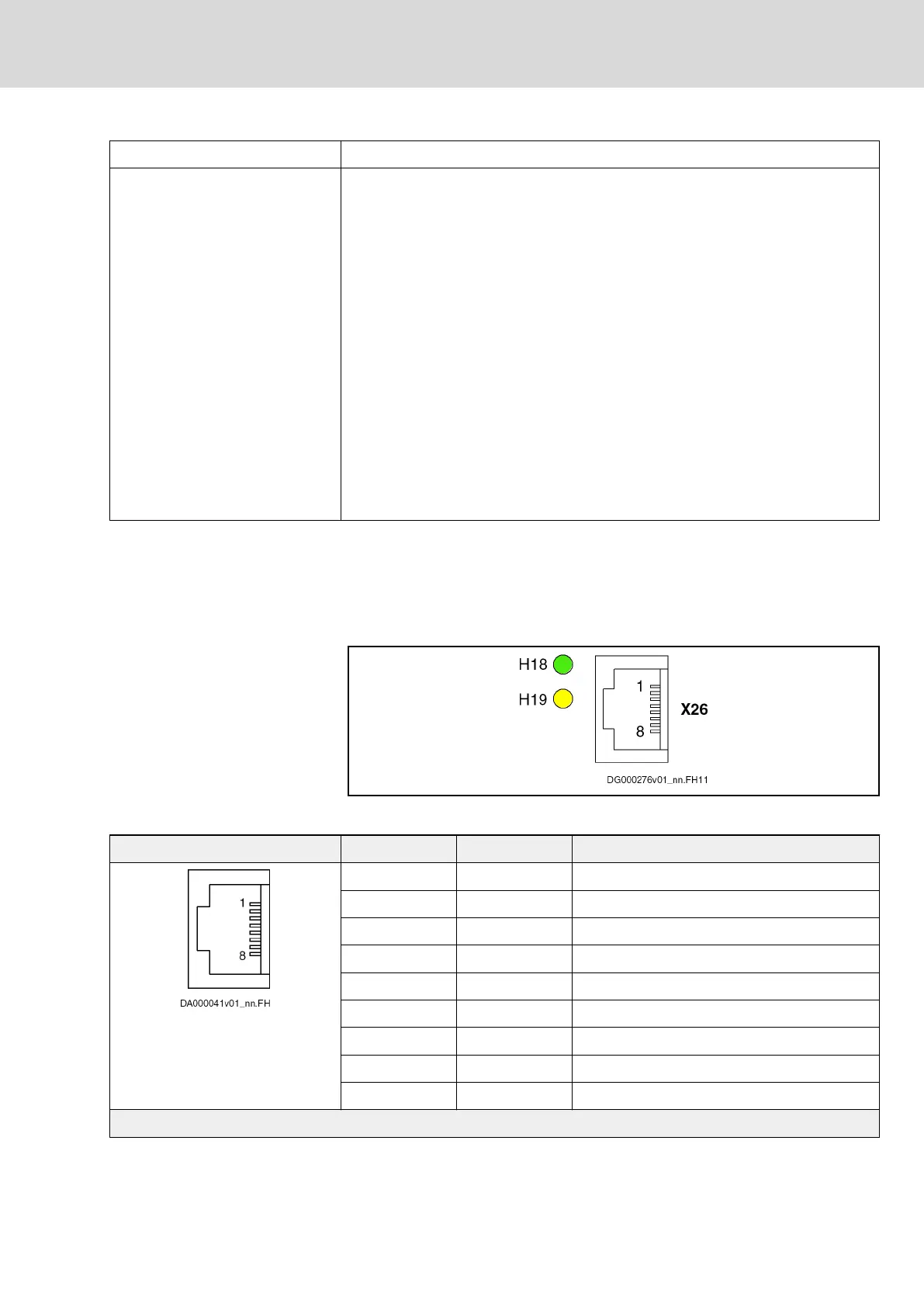

6.17 X26, Engineering Interface
Fig.6-20: X26
View Connection Signal name Function
1 TD+ Transmit, differential output A
2 TD- Transmit, differential output B
3 RD+ Receive, differential input A
4 n. c. -
5 n. c. -
6 RD- Receive, differential input B
7 n. c. -
8 n. c. -
Housing Shield connection
Properties
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 77/145
Electrical Connection Points
