REXROTH IndraDrive HCQ02 - X24 and X25, Sercos III Master

Connection cross section sol‐
id wire
mm
2
0,5 1,5
Connection cross section
stranded wire
mm
2
0,5 1,5
Connection cross section AWG 24 16
Type of contact Relay Contact Type 2
For technical data, see index entry "Relay contact → Type 2"
Fig.6-17: Function, Pin Assignment, Properties
Integrate the Bb contact (Bb1, Bb2) in the control circuit for the
mains connection. When the Bb contact opens, the mains contac‐
tor must interrupt the power supply.

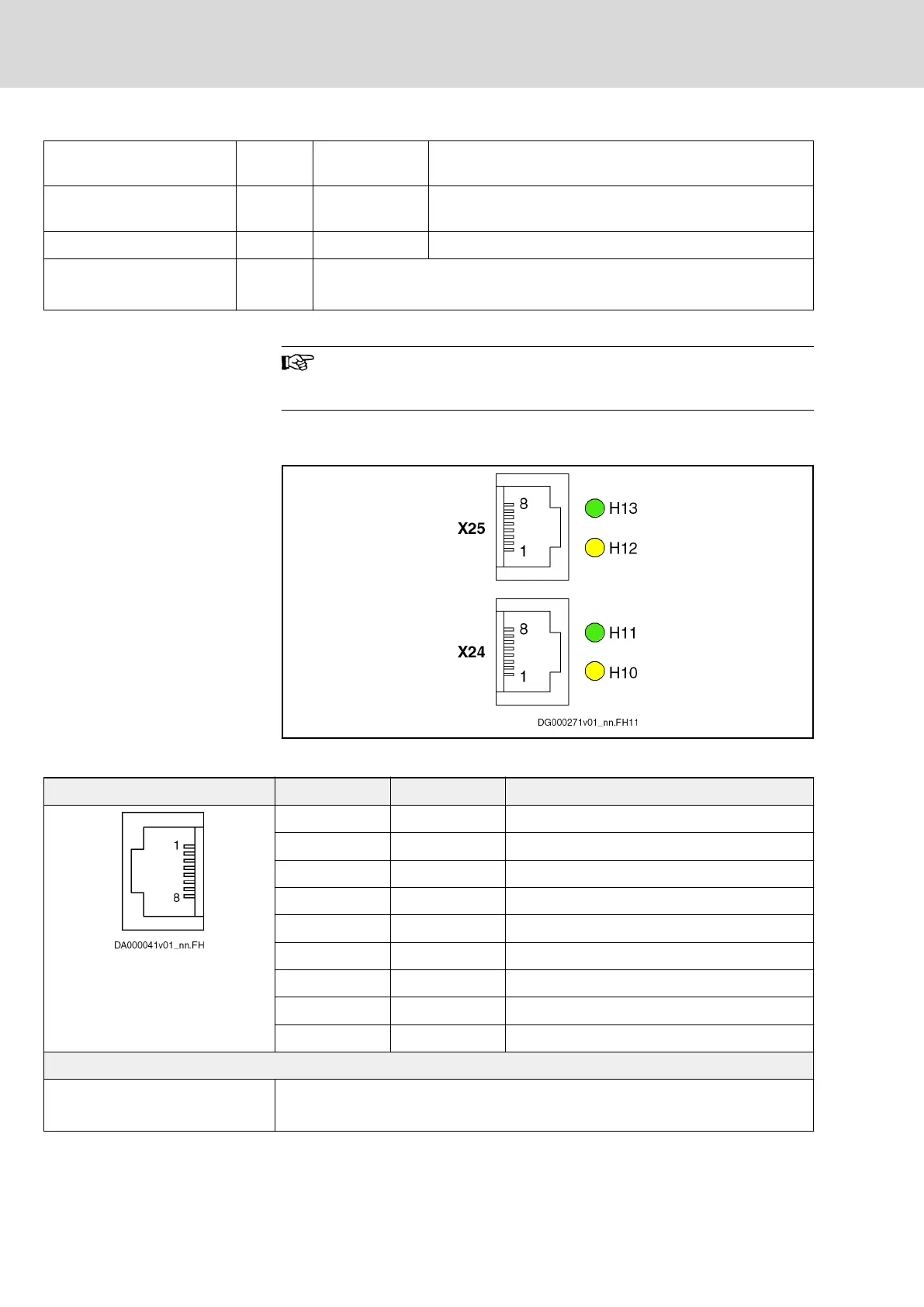

6.16 X24 and X25, sercos III Master
Fig.6-18: sercos III Master Connection Points
View Connection Signal name Function
1 TD+ Transmit, differential output A
2 TD- Transmit, differential output B
3 RD+ Receive, differential input A
4 n. c. -
5 n. c. -
6 RD- Receive, differential input B
7 n. c. -
8 n. c. -
Housing Shield connection
Properties
Standard ● Ethernet
● Type: RJ-45, 8-pin
