Connect the shields of the motor cables via the individual shield connec‐
tions at the housing of the device.

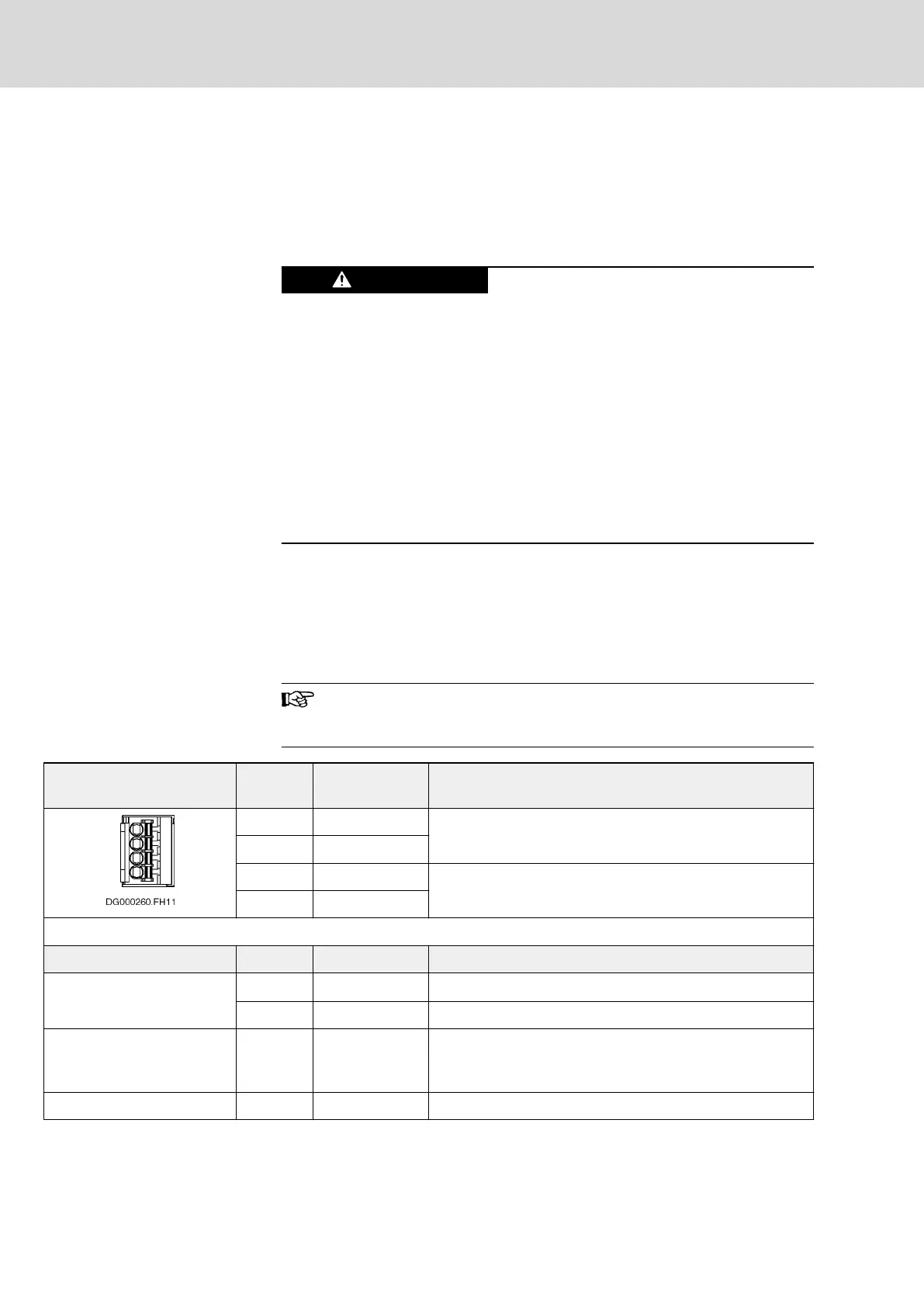

6.10 X6.1 … X6.4, Motor Temperature Monitoring and Motor
Holding Brake
Dangerous movements! Danger to persons
from falling or dropping axes!
The standard motor holding brake provided or an external motor holding
brake controlled directly by the drive controller are not sufficient on their own
to guarantee personal safety!
Personal safety must be achieved using higher-level, fail-safe measures:
● Block off danger zones with safety fences or safety guards
● Additionally secure vertical axes against falling or dropping after switch‐
ing off the motor power by, for example,
– mechanically securing the vertical axes
– adding external braking/arrester/clamping mechanisms
– ensuring sufficient counterbalancing of the vertical axes
Function
The connection points X6.1 to X6.4 have an identical design. The identifiers
".1" to ".4" refer to the respective axis number.
The connection points contain the connections for
● monitoring the motor temperature
● controlling the motor holding brake
Via an integrated contact element (BR), the power section
switches the voltage of the external 24V supply to the output for
controlling the motor holding brake.
View Connec‐
tion
Signal name Function
1 MotTemp+ Input motor temperature monitoring
2 MotTemp-
3 +24VBr Output for controlling the motor holding brake
4 0VBr
Spring terminal (connector) Unit Min. Max.
Connection cable
Stranded wire
mm
2
0,2 1,5
AWG 24 16
Current carrying capacity of
outputs for controlling motor
holding brakes
A - 1,3
Time constant of load ms - 50
Bosch Rexroth AG DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
68/145
Electrical Connection Points
