6.20.2 Shield Connection Control Lines

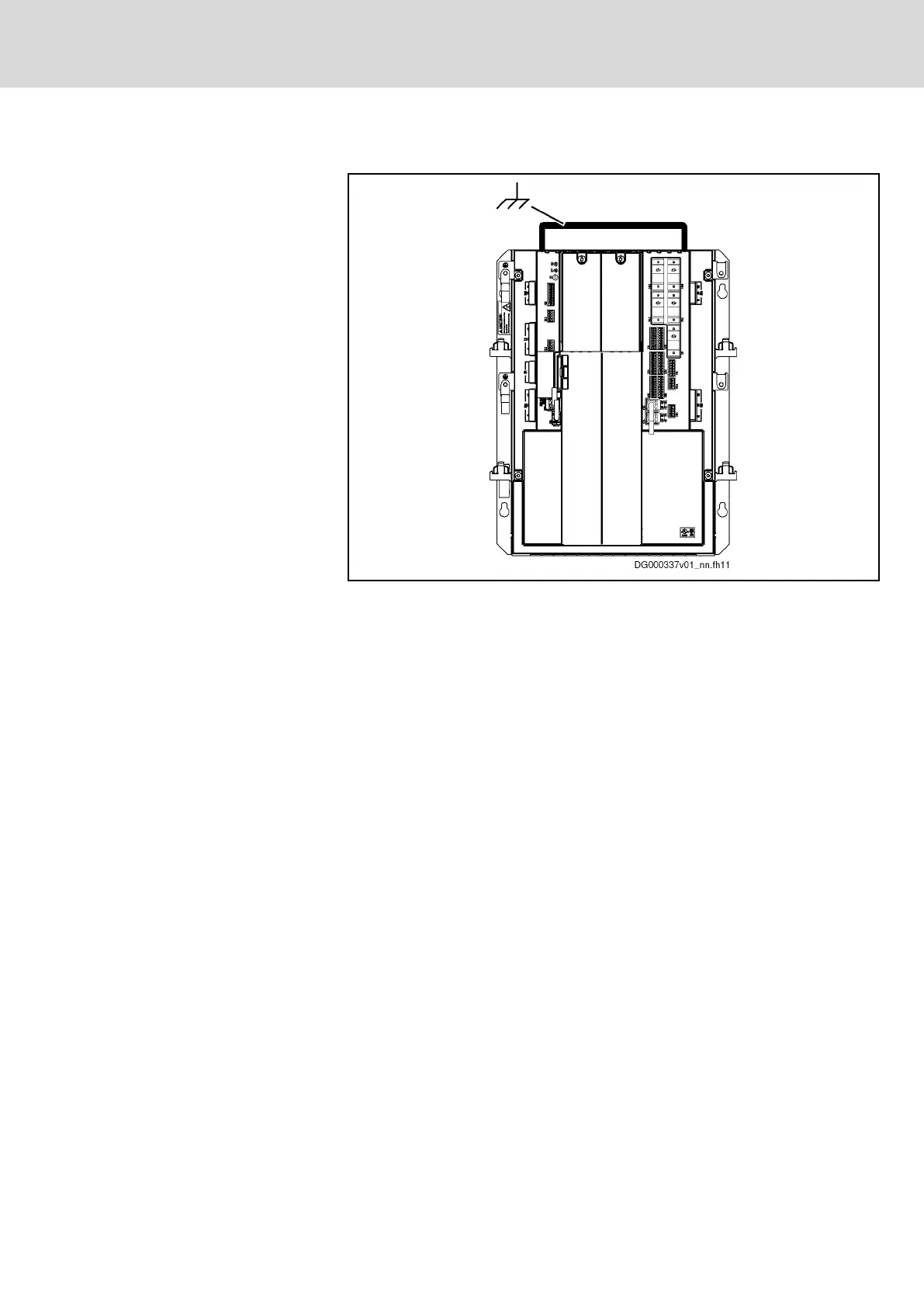

Fig.6-28: Shield Connection Control Lines
The shields of the control lines are connected via the shielding plate at the
top of the housing.
For encoder cables, the shields are connected via the D-Sub connector. The
shield of the encoder cable mustn't be connected a second time at the shield
connection for the control lines.
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 83/145
Electrical Connection Points
