REXROTH IndraDrive HCQ02 - X83... X86, Digital Inputs

6.19 X83 ... X86, Digital Inputs
Type Number
of poles
Solid wire
[mm²]
Stranded wire
[mm²]
AWG Figure
Spring terminal
Female (connec‐
tor)
8 0,2–1,5 0,2–1,5 24–16

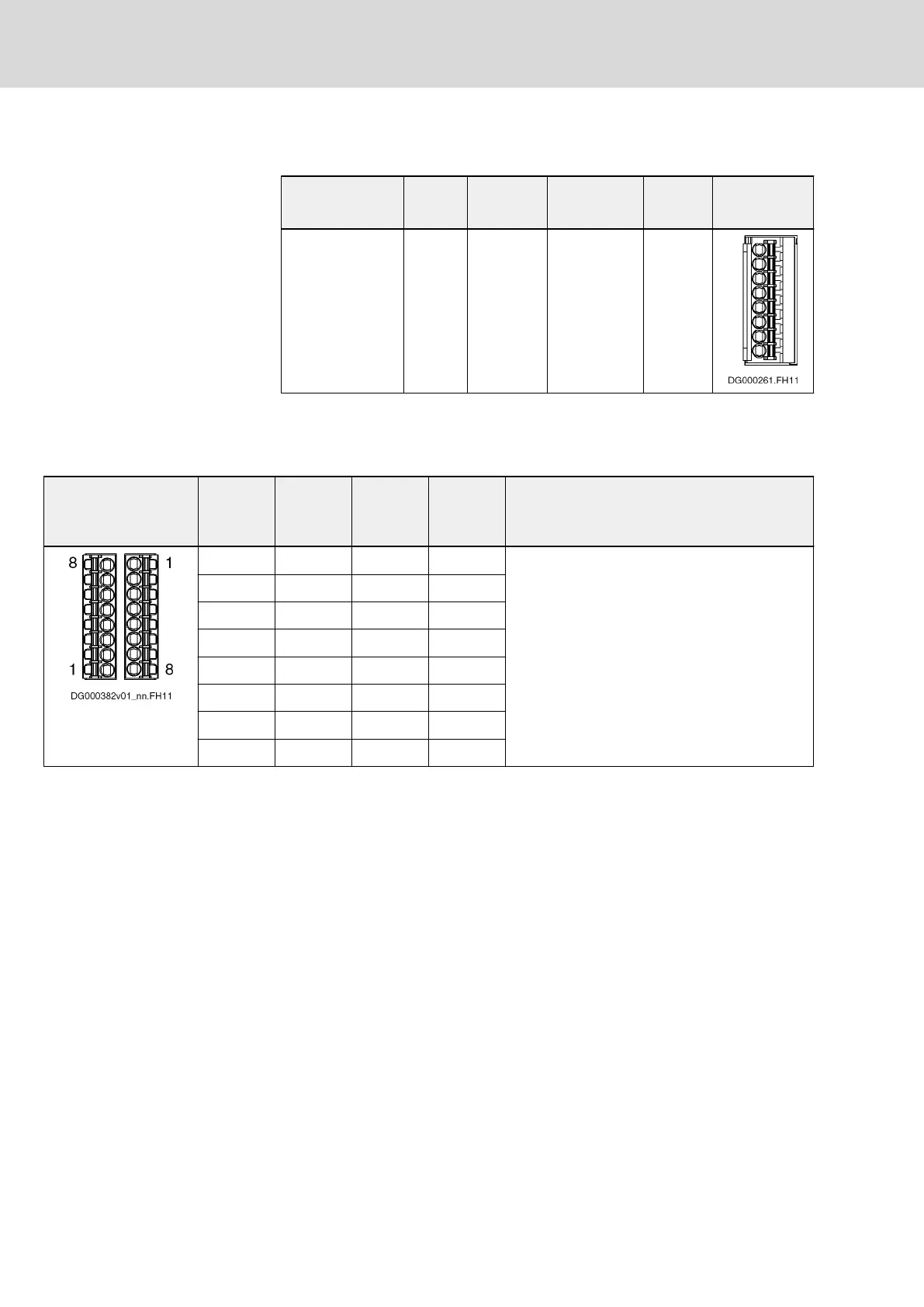

Fig.6-23: Data of Connection Point
X83, X84
View Connec‐
tion
X83
Connec‐
tion
X84
Signal
X83
Signal
X84
Technical Data
8 1 I32 I17 The digital inputs correspond to "IEC 61131,
type 1".
Reference potential 0 V: X18.4
Technical data: See index entry "Digital inputs →
Technical data"
7 2 I31 I18
6 3 I30 I19
5 4 I29 I20
4 5 I28 I21
3 6 I27 I22
2 7 I26 I23
1 8 I25 I24
Fig.6-24: Signal Assignment X83, X84
Bosch Rexroth AG DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
80/145
Electrical Connection Points
