REXROTH IndraDrive HCQ02 - Shield Connection Methods

6.20 Shield Connection
6.20.1 Shield Connection Motor Cable
* Does not exist at 3-axis devices

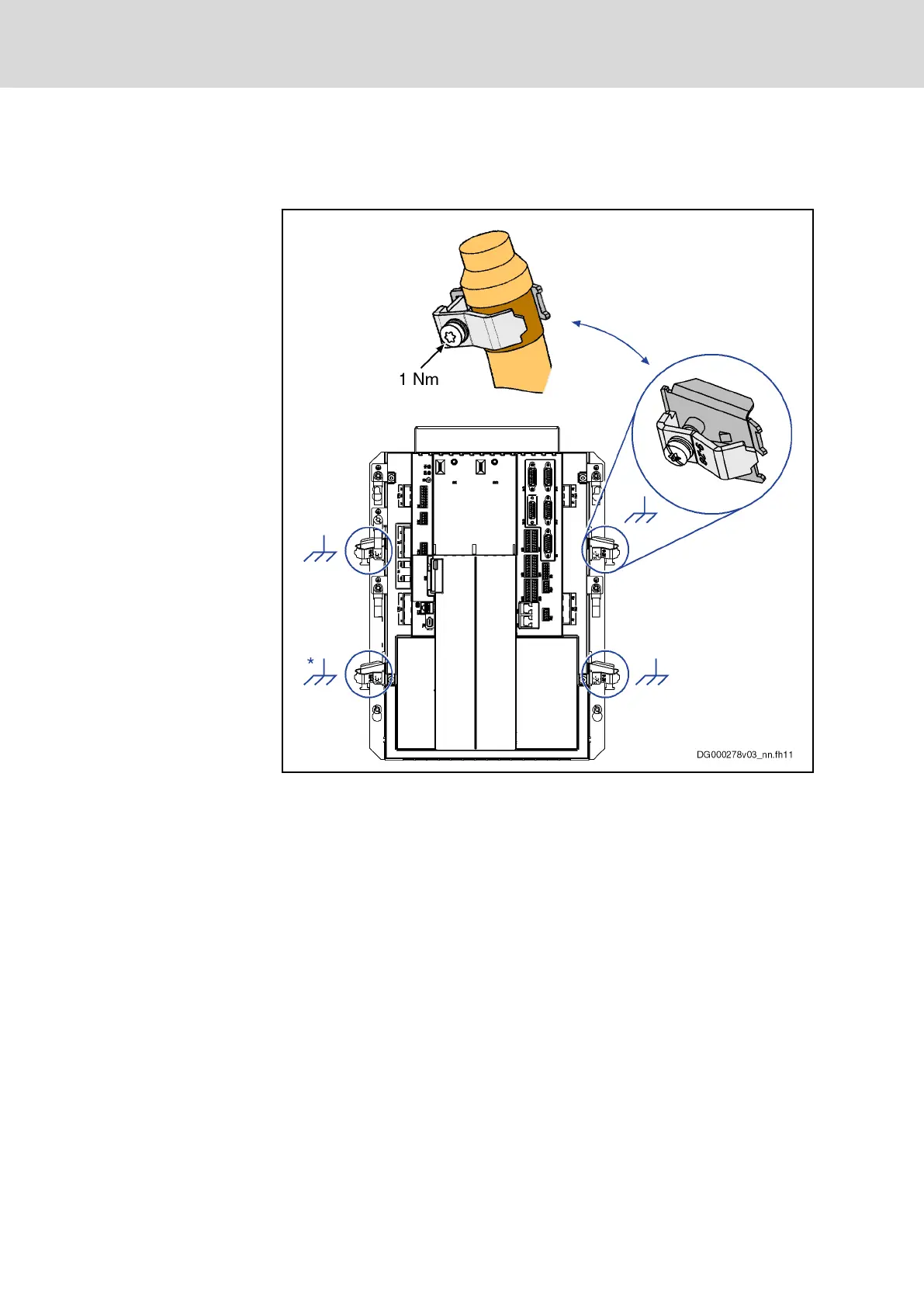

Fig.6-27: Shielding Plates for Motor Cables
The shields of the motor cables are connected with screw terminals (tighten‐
ing torque: 1 Nm) to the individual shielding plates at the housing of the de‐
vice.
Bosch Rexroth AG DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
82/145
Electrical Connection Points
