REXROTH IndraDrive HCQ02 - HCT02 Power Section Basic Data

Property damage due to temperatures higher
than 105 ℃!
NOTICE
Observe the indicated minimum distances!
Above the devices there may only be such materials which
● are not combustible
● are insensitive to the occurring high temperatures

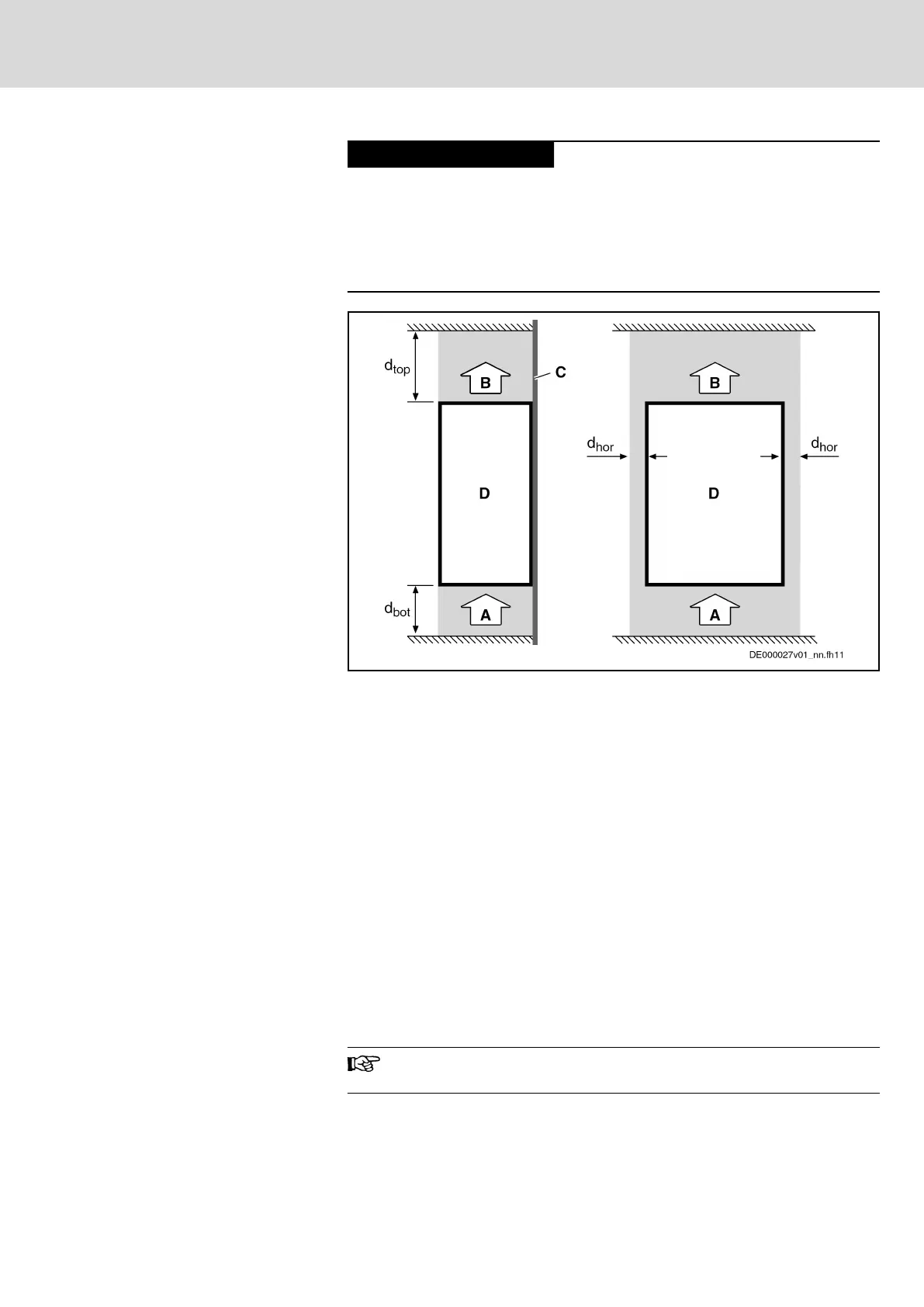

A Air intake
B Air outlet
C Mounting surface in control cabinet
D Housing of the device (without parts such as shielding plates on top
and bottom of device)
d
top
Minimum distance on the top of the device
d
bot
Minimum distance on the bottom of the device
d
hor
Minimum distance on the side of the device
Fig.5-19: Air Intake and Air Outlet at Device
Basic Data Power Section HCT02
General Information
This section contains
● Data for control voltage supply
● Data for mains voltage supply
● Data of DC bus
● Data of inverter
● Requirements on an external braking resistor
The order of the data tables below follows the energy flow in the
drive controller – from mains connection to motor output.
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 53/145
Technical Data of the Components
