4.3 Installation Conditions
4.3.1 Ambient and Operating Conditions
Check that the ambient conditions, in particular the control cabi‐
net temperature, are complied with by calculating the heat levels
in the control cabinet. Afterwards, make the corresponding meas‐
urements to verify that the ambient conditions have actually been
complied with.
In the technical data of the individual components, the power dis‐
sipation is indicated as an important input value for calculating the
heat levels.
Ambient and operating conditions (HCS, HMV, HMS, HMD, HCQ, HCT,
KCU)
Description Symbol Unit Value
Conductive dirt contamination Not allowed
Protect the devices against conductive dirt contami‐
nation by mounting them in control cabinets with pro‐
tection degree IP54 (in accordance with IEC 60529).
Protection degree of the device (IEC 60529) IP20
Use within the scope of CSA / UL For use in NFPA 79 applications only.
Temperature during storage See index entry "Storage → Of the components"
Temperature during transport See index entry "Transport → Of the components"
Allowed mounting position
Definition of mounting positions: See index en‐
try "Mounting positions"
G1
Installation altitude h
nenn
m 1000
Ambient temperature range T
a_work
°C 0 … 40

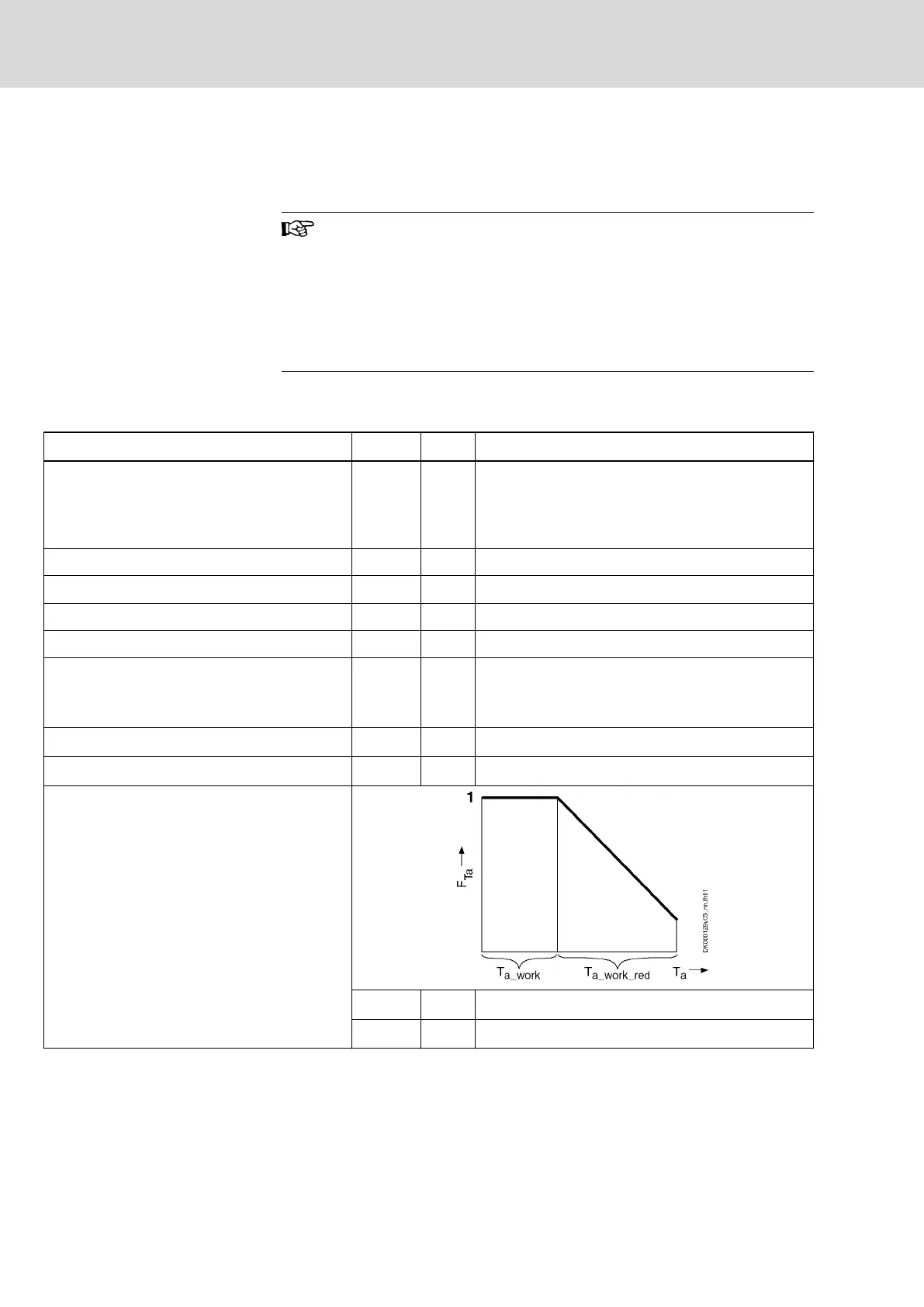

Derating vs. ambient temperature:
In the ambient temperature range T
a_work_red
, the
performance data is reduced by factor F
Ta
:
F
Ta
= 1 - [(T
a
- 40) × f
Ta
]
Example: With an ambient temperature
T
a
= 50 °C and a capacity utilization factor
f
Ta
= 2 %/K, the rated power is reduced to
P
DC_cont_red
= P
DC_cont
× F
Ta
=
P
DC_cont
× (1 - [(50 - 40) × 0.02]) = P
DC_cont
× 0.8
Operation at ambient temperatures outside of
T
a_work
and T
a_work_red
is not allowed!
T
a_work_red
°C 40 … 55
f
Ta
%/K 2,0
