Number of switching actions
at maximum time constant of
load
250.000
Switching frequency Hz - 0,5
Short circuit protection Available
Overload protection Available
Integrated contact element
for controlling the motor hold‐
ing brake
Electronic contact
Fig.6-10: Function, Pin Assignment
Notes on Installation
● Make sure the power supply for the motor holding brake at the motor is
sufficient. You have to take into account that voltage drops on the sup‐
ply line. Use connection lines with the highest possible cross section of
the single strands.
● An external contact element is required, if motor holding brakes with
higher currents than the allowed current load are to be supplied at X6.n.
Connection Diagram

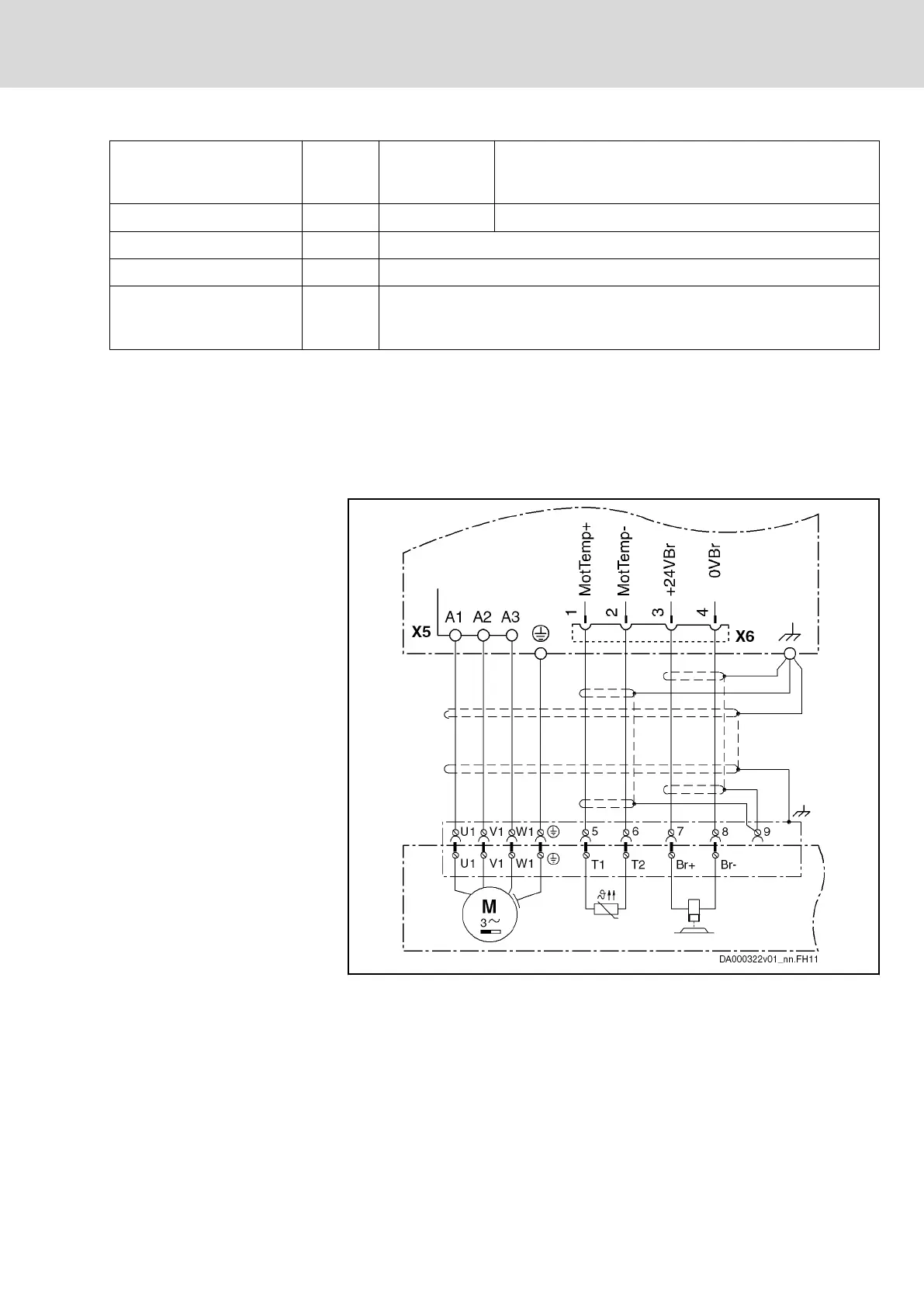

Fig.6-11: Connection of Motor Temperature Monitoring and Motor Holding
Brake
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 69/145
Electrical Connection Points
