24V External power supply unit for 24V supply
Br Circuit for brake control
Out Digital outputs
ST, LT Control section and power section of basic device
X18.4…6 0V connections (jumpered in the drive controller)

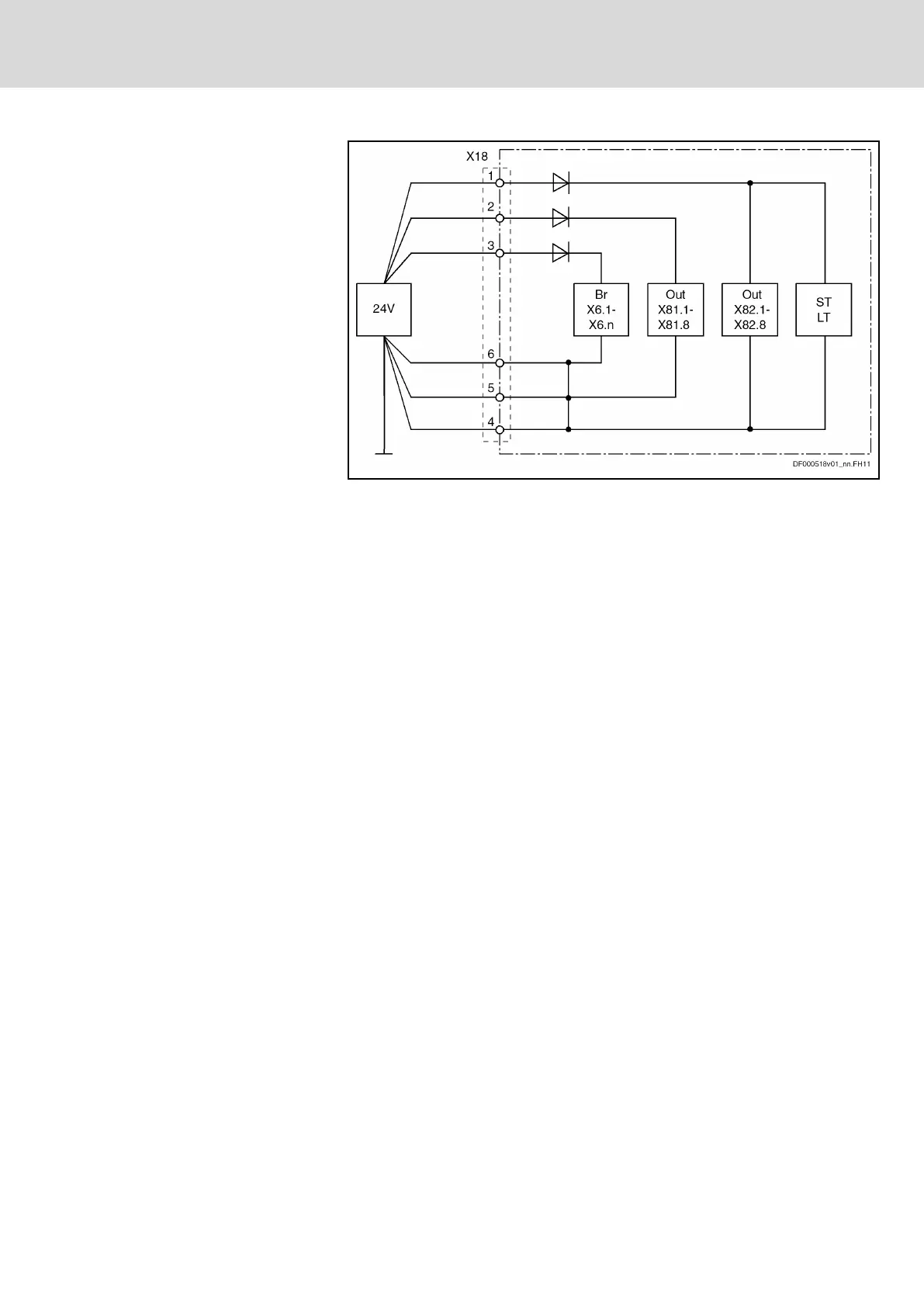

Fig.6-15: Block Diagram of Internal Control Voltage
DOK-INDRV*-HCQ-T+HMQ-T-PR03-EN-P
Rexroth IndraDrive Drive Controllers HCQ, HCT
Bosch Rexroth AG 73/145
Electrical Connection Points
