RichAuto A1X - Interface Board; 50-Pin Data Transmission Cable; USB Communication Cable

Beijing RichAuto S&T Co., Ltd.
Forging ahead and determined to win 5

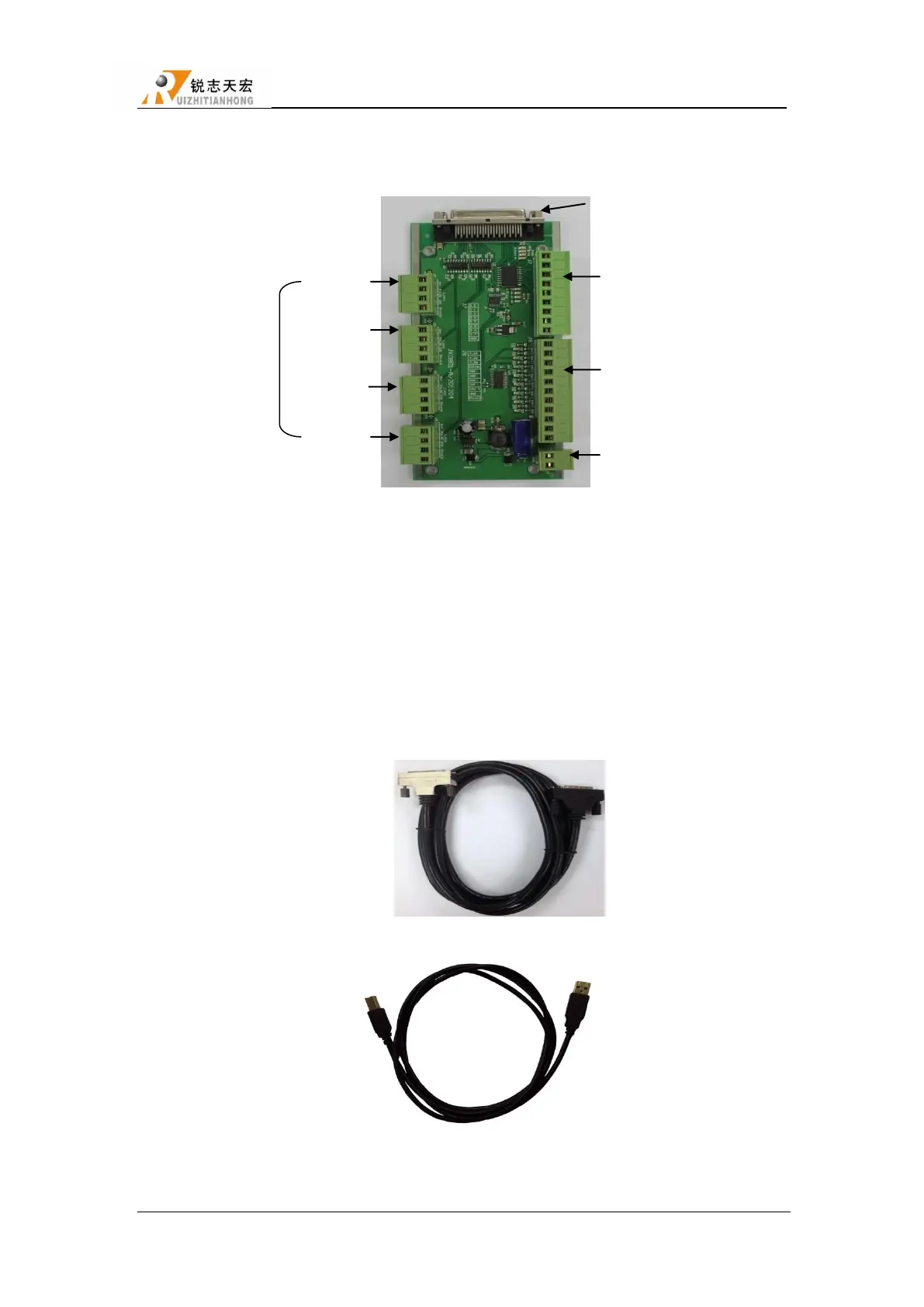

1.2.2 Interface board
As shown below，including 5 parts:
1) 50-pin data cable port：connect handle with interface board.
2) Output control terminal：including spindle On/Off signal,work&alarm led siganl etc..
3) Input control terminal：including machine origin detection switch，toolsetting，driver alarm，
hard limit switch，and E-stop signal，pedal switch.
4) Power supply terminal： DC24V,3A
5) Motor driver control terminal.
1.2.3 50-pin data transmission cable
1.2.4 USB communication cable
50-pin data cable Interface
J7:Output control terminal
J8:Input control terminal
DC24V Input terminal
Motor
driver
control
terminal
X-Axis
Y-Axis
Z-Axis
C-Axis
