1.2 Description of each component
1.2.1 Handle

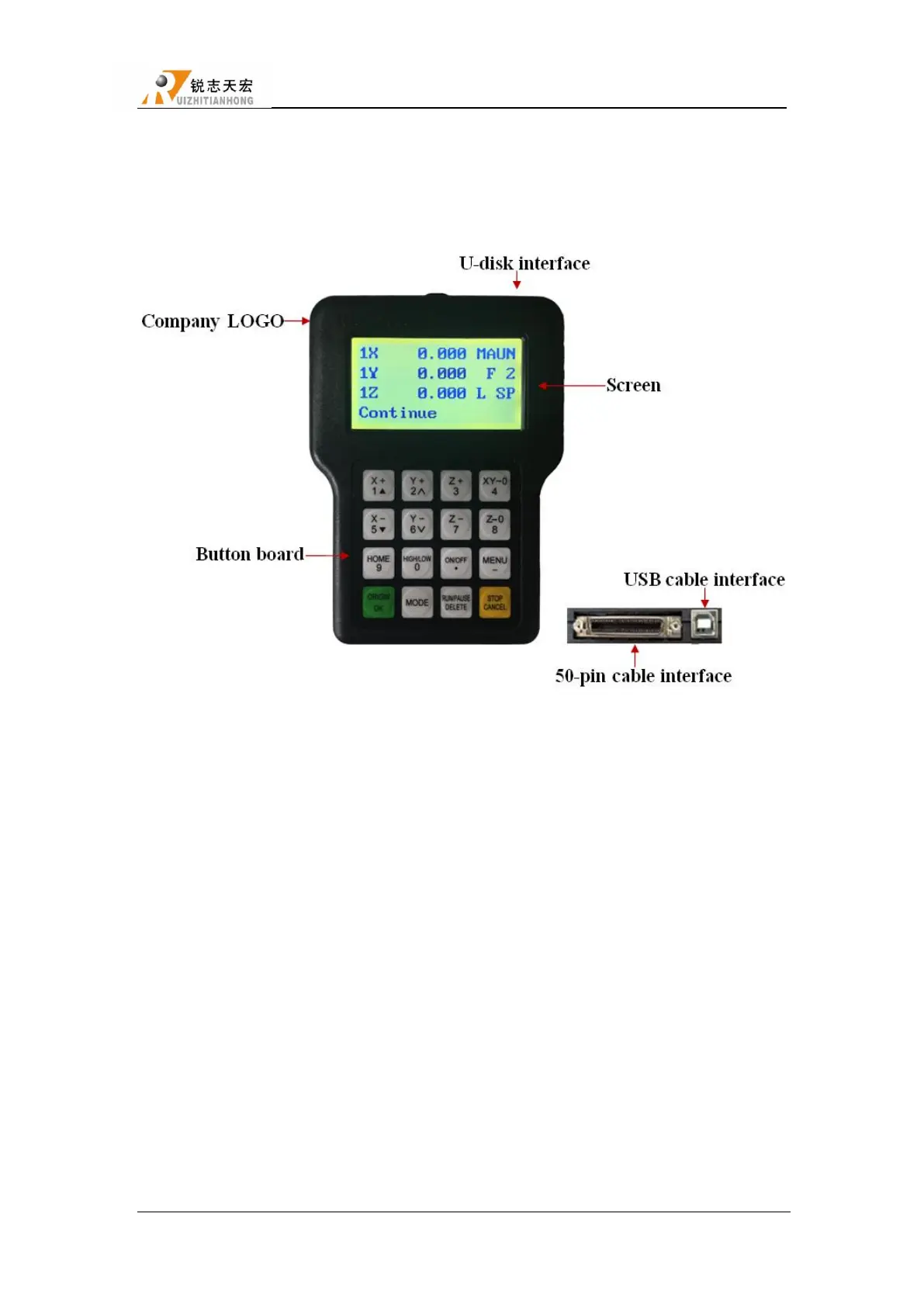

As shown below，including 6 parts:
Handle
1) Screen：128 * 64 resolution LCD to display the machine motion,system settings and other
information.
2) Button board：Contains 16 buttons to input system parameter information and operate the
machine.
3) U-disk interface：Interface of U-disk（FAT16/32）and the memory card.
4) Company LOGO：RichAuto.
5) 50-pin data cable interface：Connect the handle with the interface board to realize controling
the machine.Including 2.5m,4m,and 6m.
6) USB cable interface：It is used to connect the handle with your computer.
