9.5 Tool setting(Tool measurement)
Tool setting is a process to set up a workpiece coordinate system in machine coordinate
system.To put it in other words,tool setting aims to set the workpiece origin.
Including：fixed calibration,mobile calibration.

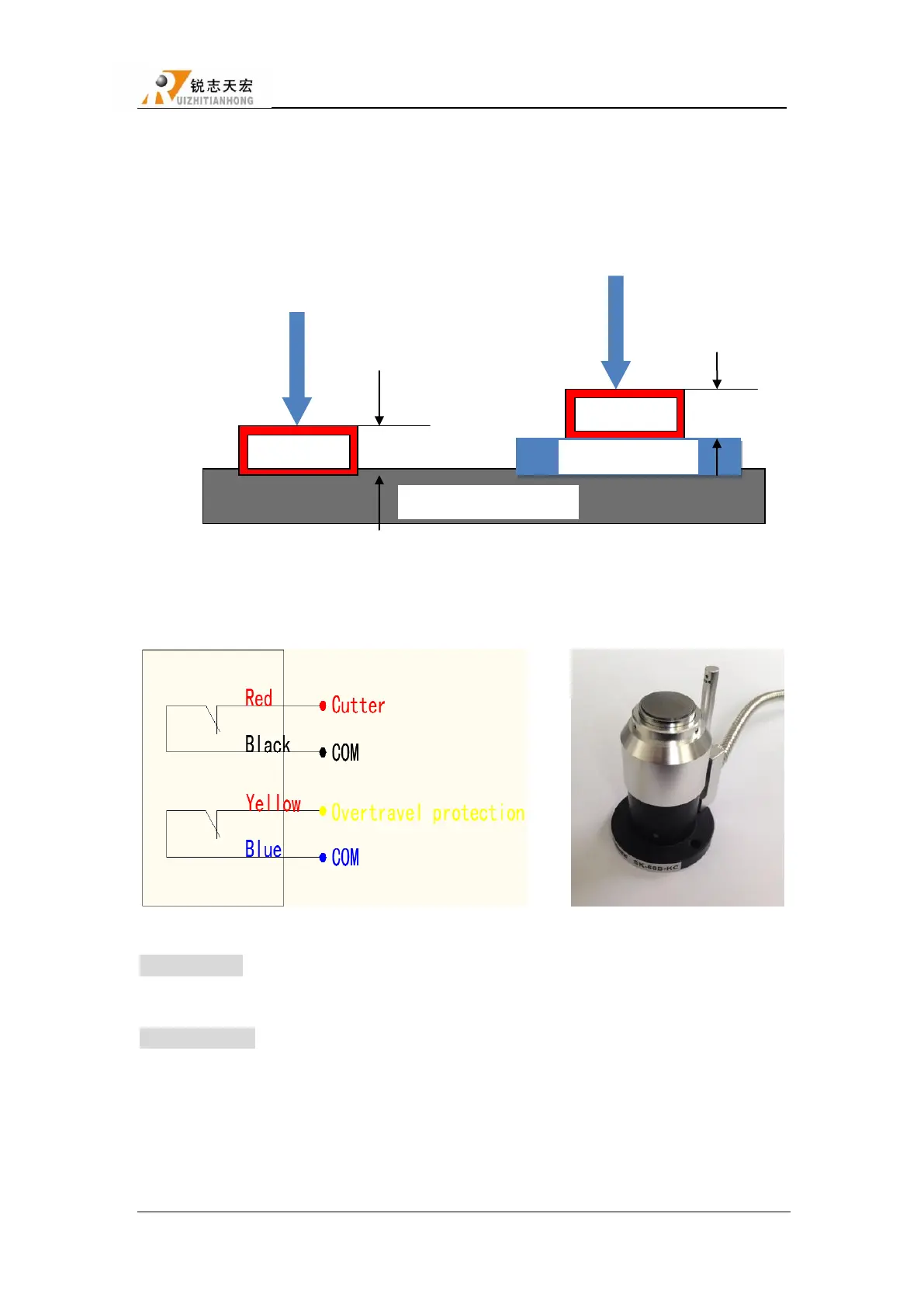

Fixed&Mobile calibration
9.5.1 Fixed calibration
Wiring Product picture
Normally open：Cutter signal connects to X4 (X5-A18),COM connects to GND-INPUT SIGNAL
X4:system default normally open.
Normally closed：Firstly,modify the input level of X4 to normally closed,then connect cutter
signal to X4 (X5-A18),COM to GND-INPUT SIGNAL.
Overtravel protection signal is similar to cutter signal,users can connect to X7(X8-A18)-- E-stop
signal.
