7. A15--Multi-spindle Motion Control System

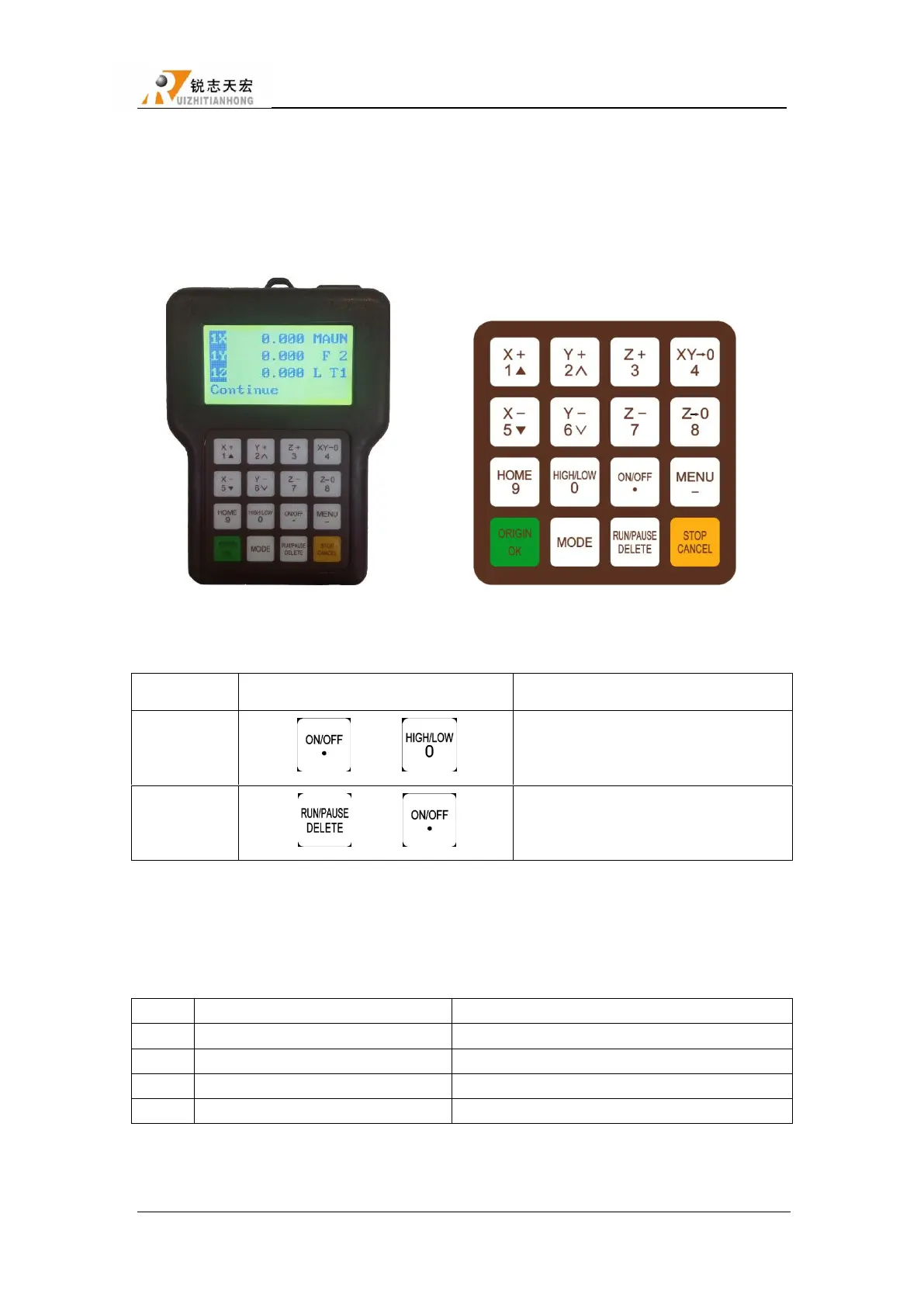

7.1 Handle and buttons introduction
The color of A15 handle is brown：
Handle Buttons
Special combination button
Combination button
Function
1
“ ”+ “ ”
Cylinder change over
2
“ ”+ “ ”
Calculate Z axis offset value of each
tool
7.2 Output description
OUTPUT SIGNAL
Function
Notes
Y5
Cylinder 1 output
Logic low，control spindle 1 up and down
Y6
Cylinder 2 output
Logic low，control spindle 2 up and down
Y7
Cylinder 3 output
Logic low，control spindle 3 up and down
Y8
Cylinder 4 output
Logic low，control spindle 4 up and down
