3.3 Hardware wiring
Installation Requirements：Power（24V，3A）， it is better to add a filter to prevent the electric
field interference.If choosing origin detecting switches of different power supply type, the special
testing switching power is needed.（24V origin detecting switch is the best choice）

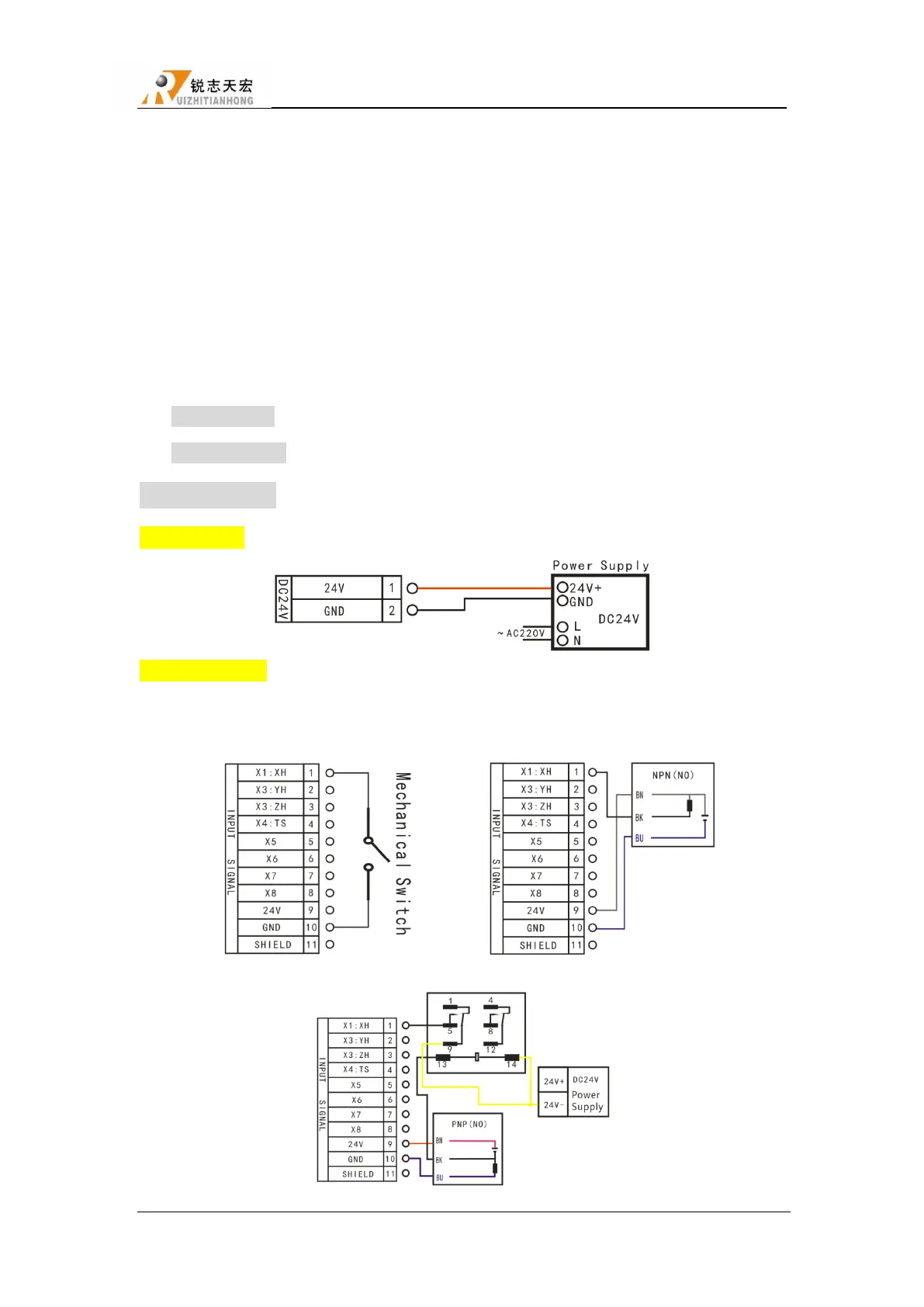

RichAuto control system realizes its control through the connection between the interface
board and CNC machine. Interface board terminal can be divided into input terminal and output
terminal
Input terminal：INPUT SIGNAL DC24V(Power Supply)
Output terminal：X,Y,Z,C axis pulse signal output terminal,OUTPUT SIGNAL
Input terminal
Power Supply
INPUT SIGNAL
1. Machine Origin Y and Z are the same as X
Mechanical NPN(NO)
PNP(NO)
To Next Page
