Beijing RichAuto S&T Co., Ltd.
Forging ahead and determined to win 53

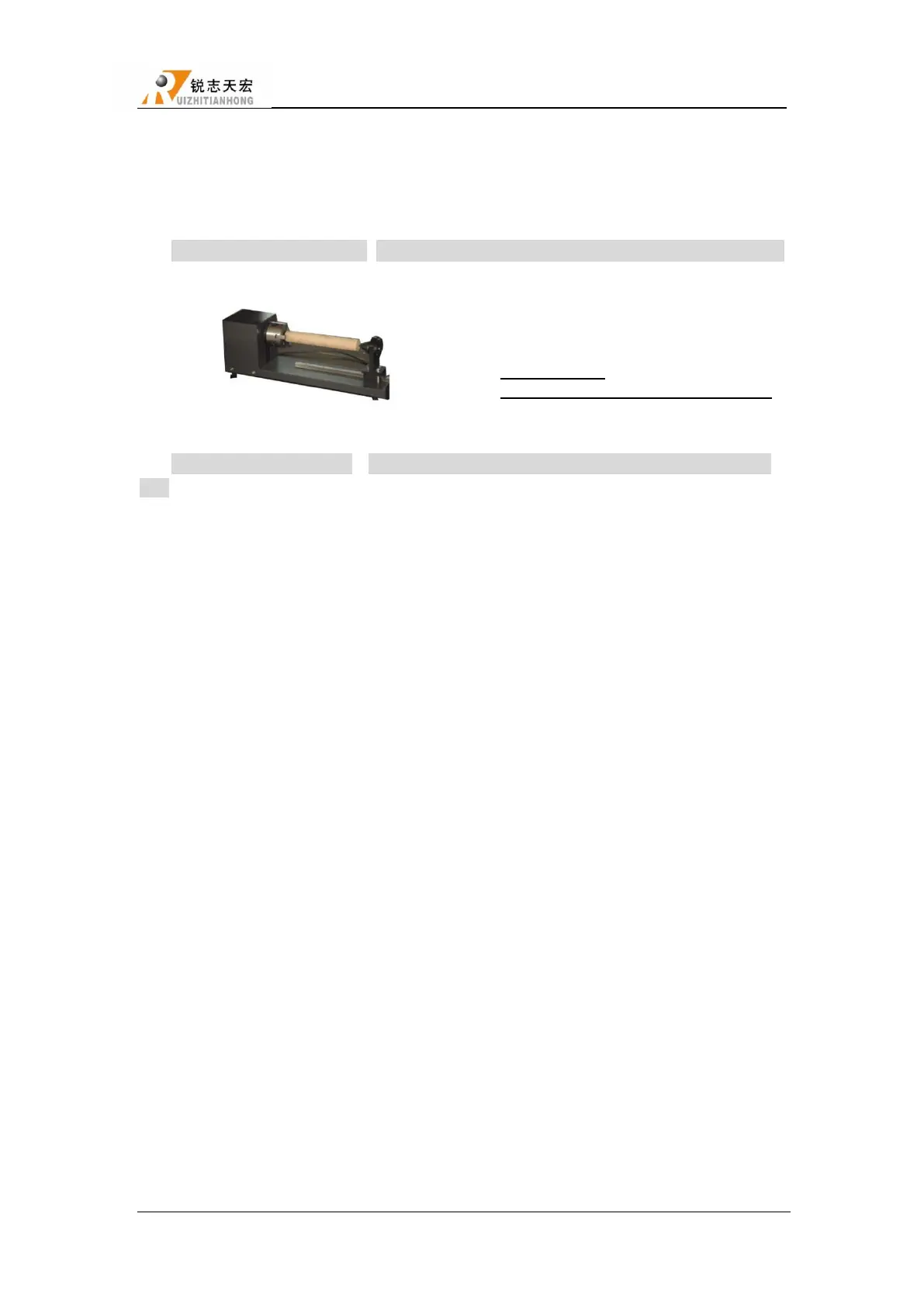

8.3 Parameters description
1.Pulse equiv：Unit：ms（MACHINE SETUP）
Rotation axis stepper driver：Formula = pulses per revolution / angles per revolution（360°）
pulse =
360°
stepper angle
∗driver subdivision
360°∗transmission ratio
Rotation axis servo driver：Handle pulse equivalent(400)*360* mechanical transmission
ratio
2.Work Orig Offset：（Auto Pro Setup，Unit：mm）
It is mainly used for the work origin position which is the center of the processing material. If
the processing material is cylindrical and work origin is the center, we can still set origin on the
surface and then modify work origin offset number for cylindrical radius, so that the actual work
origin is the center. X、Y、A are the same.
3.The rotation axis labels：(System Setup - Function Configuration-Rotatamark)
Change the rotation axis marked with A, B, C three markup, the user changes the actual
situation, the changes and the need to reboot the system off.
8.4 G code example
G90 G54
M03
G01 X209.5 Y5.684 Z90. A0.0 F3000
X4. Y5.51 Z89.851 A4.708
Y.02 Z23.188
M05
M30
