Beijing RichAuto S&T Co., Ltd.
Forging ahead and determined to win 58
chang he direction of the arrow facing up) The same below.
↓:normally open,↑:normally colsed

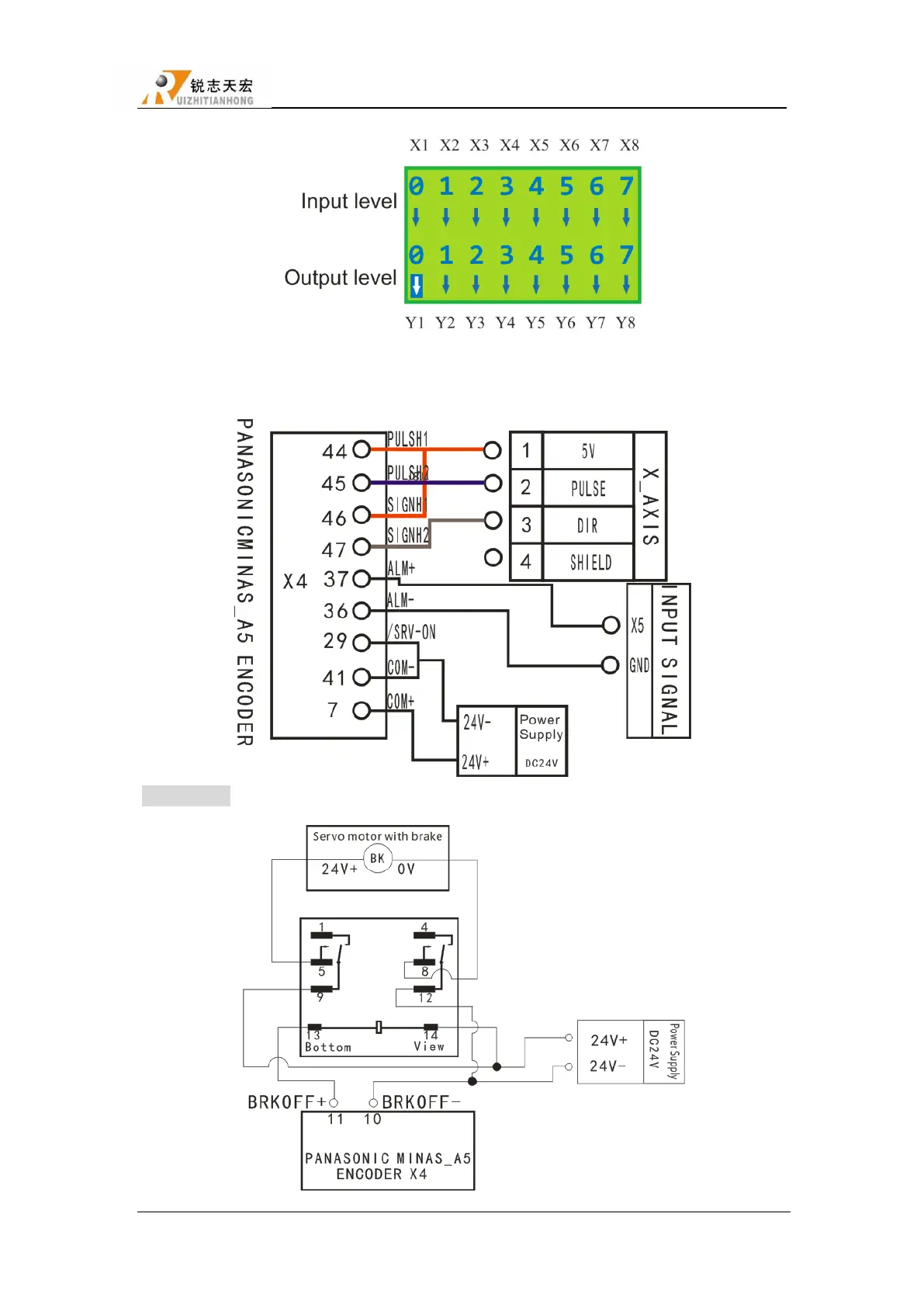

9.3.2 PANASONIC MINAS A5
1. Wiring diagram（Y、Z same as X）Set Pr4.05=8618883,do not connect pin-29
Motor brake：
To Next Page
