9.3.3 DELTA ASDA-A2&B2

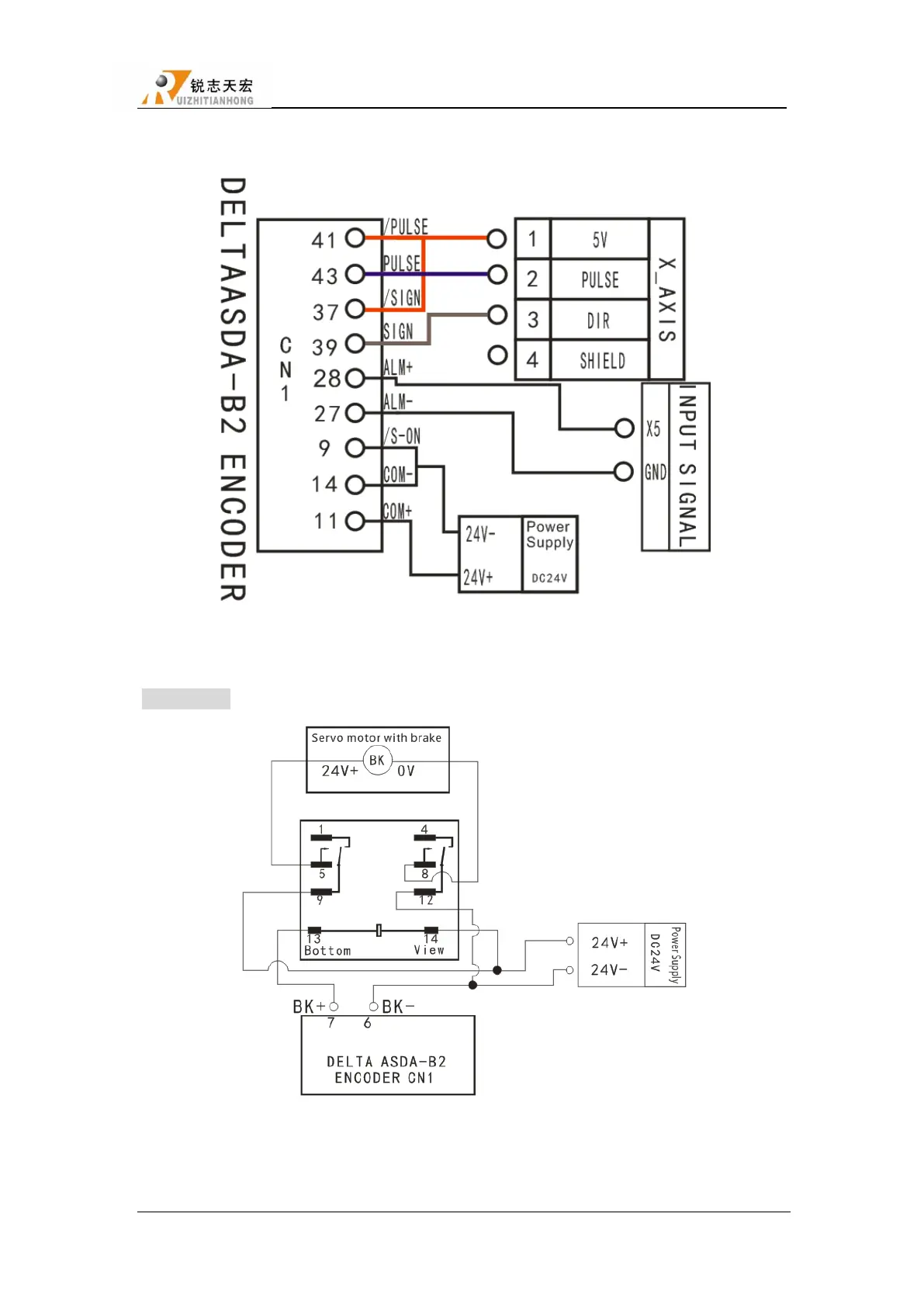

1.Wiring diagram（Y、Z same as X）Set P2-10=1,do not connect pin-9
A2 Series PULSE,/PULSE,SIGN,/SIGN correspond pin-43,41,36,37, COM- corresponds
pin-45/47/49
Motor brake：
A2 series BK-,BK+ correspond CN1-1,26
To Next Page
