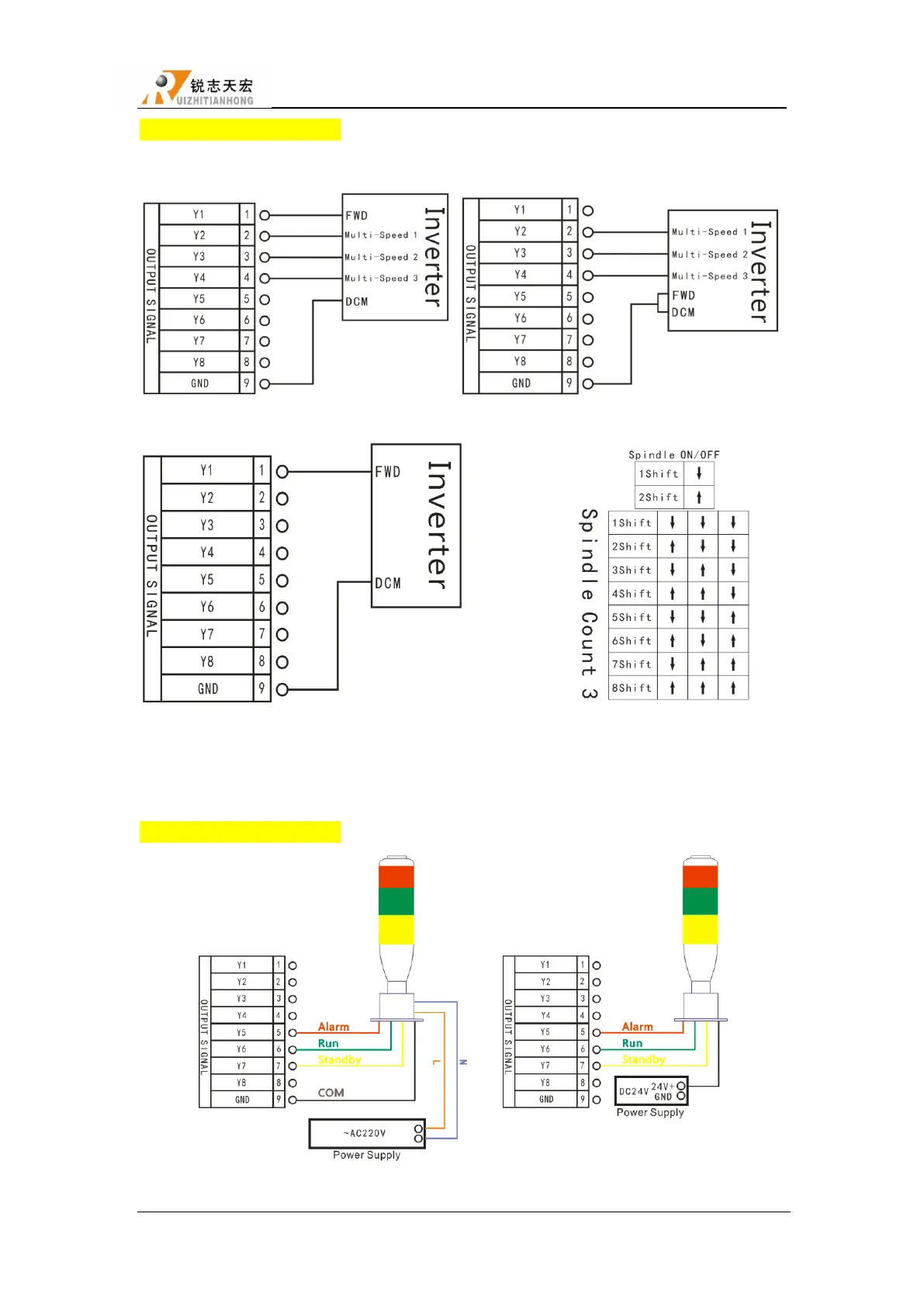

OUTPUT SIGNAL Y1-Y4
Count 3-1 Count 3-2
Count 1(ON/OFF) Spindle State
CAUTION: FWD and DCM has Connected in Parallel in some inverters, plesae do not need to
connect Y1 in such situations, you only need to connect DCM with GND of interface board,
without having to reset the spindle gear.
OUTPUT SIGNAL Y5-Y8
You can connect the machine with the control system when the above setting is over.
