Ricoh AFICIO MP C305SP Field Service Manual

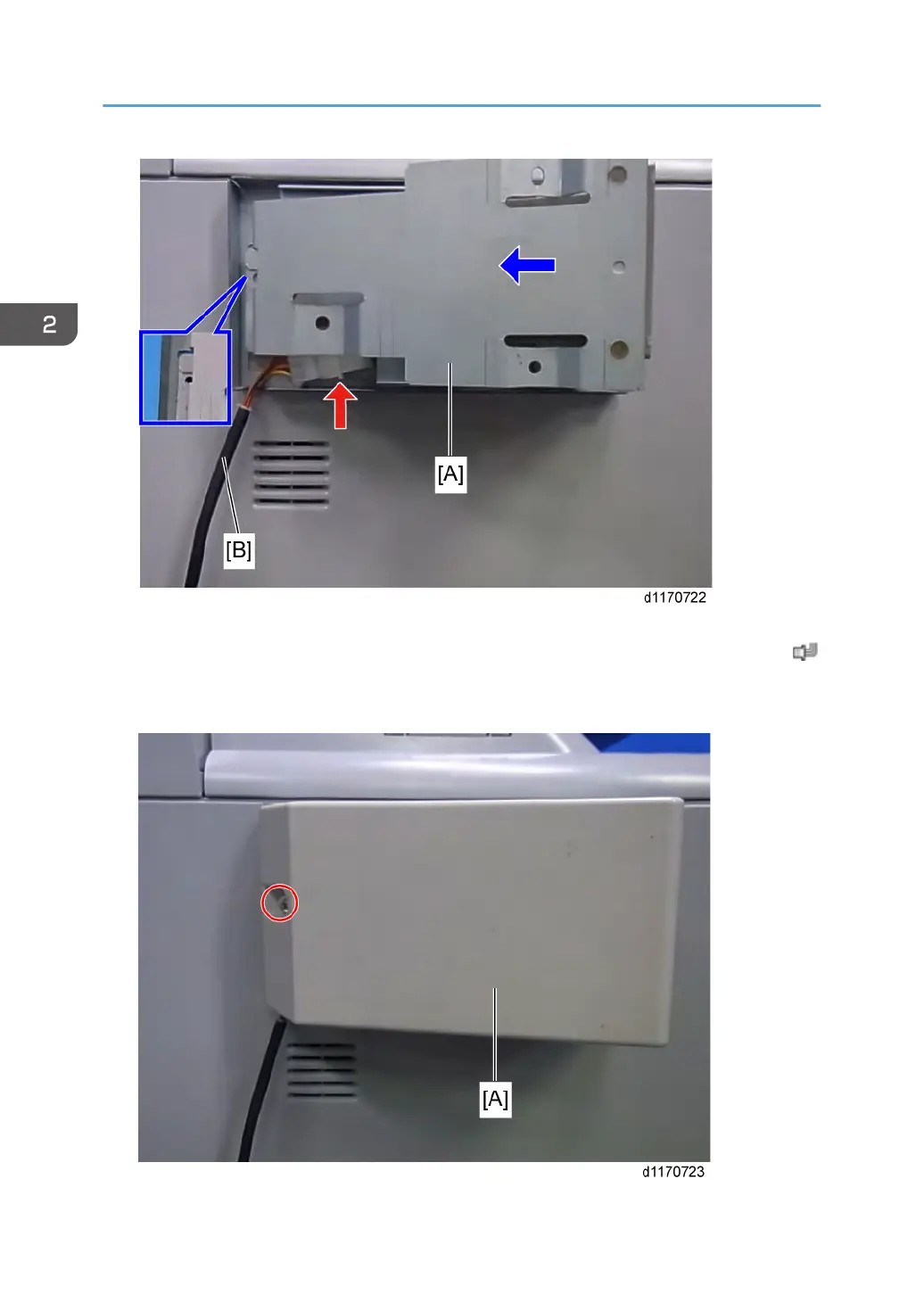

6. Connect the connector of the harness [B] to the connector from the key counter bracket, and then
insert the key counter bracket [A] into the attaching bracket obliquely from the upper right side (
x 1).
7. Pull out the harness [B] from below as shown above.
2. Installation
98
