Ricoh AFICIO MP C305SP Field Service Manual

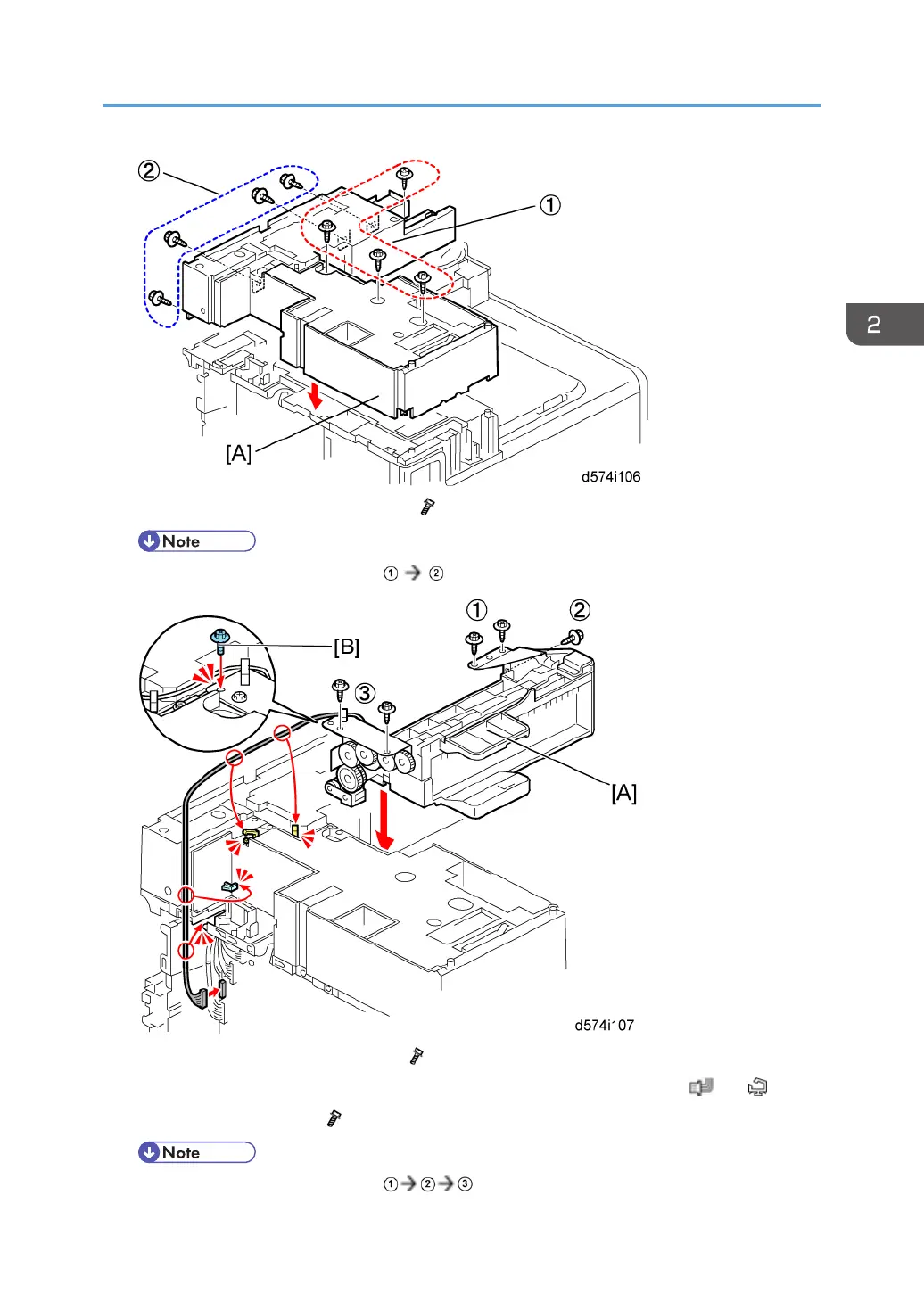

11. Attach the mounting frame [A] (M3x10: x 8)
• Install the screws in this order: .
12. Attach the 1-bin tray unit [A] (M3x10:
x 5)
13.
Connect the connector of the 1-bin tray unit to CN527 and then fix the harness ( x 1, x 3)
14.
Secure the blue screw [B] (
(blue) x 1)
• Install the screws in this order:
1-Bin Tray Unit (D574)
65
