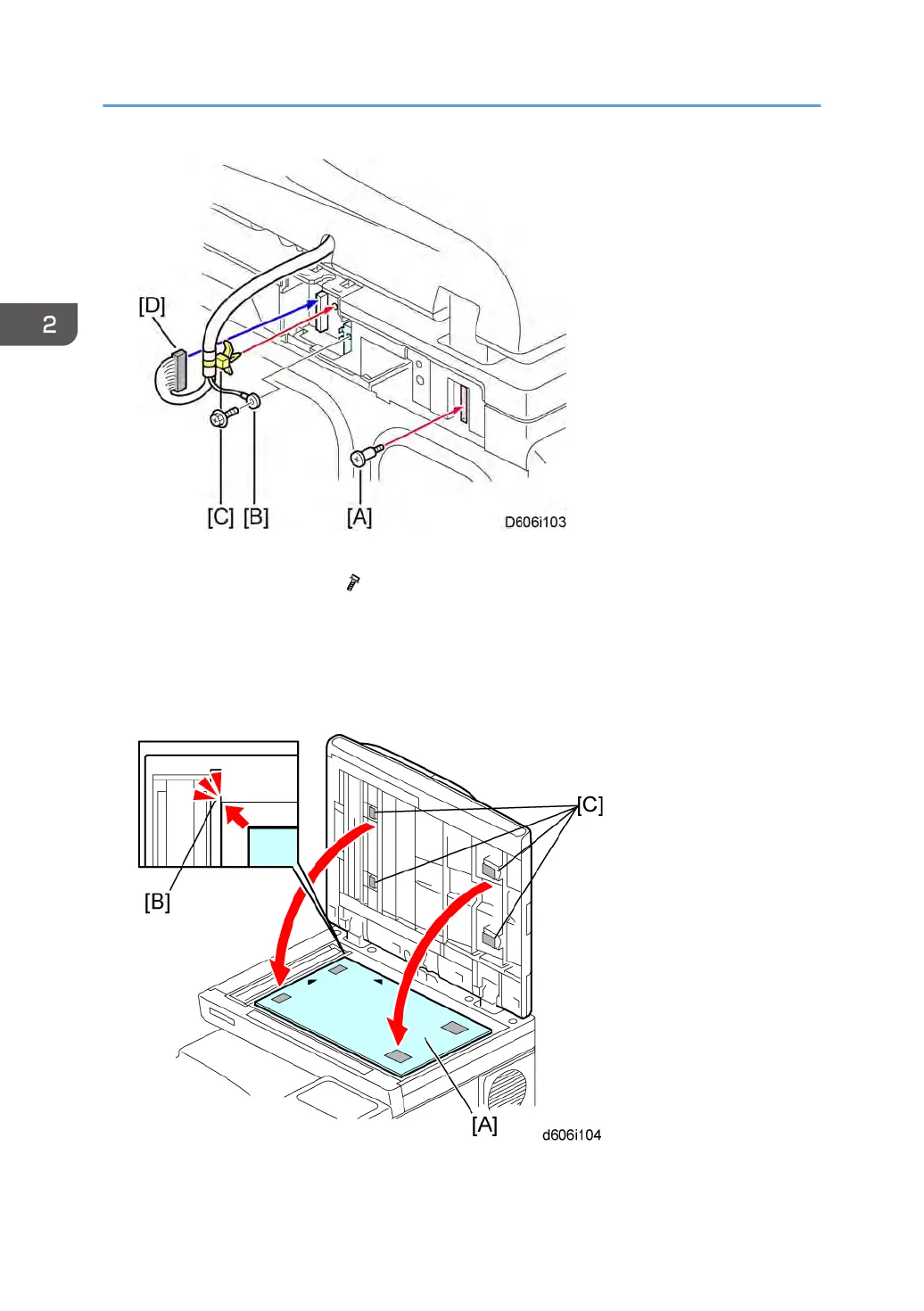

5. Secure the stud screw [A].
6. Secure the ground cable [B] ( x 1).
7. Attach the clamp [C].
8.
Connect the I/F cable [D] to the connector.
9. Push the excess I/F cable into the interior of the ARDF to prevent the I/F cable from sagging.
10. Reinstall the scanner rear cover removed in step 2.
11. Open the ARDF.
2. Installation
76
