Ricoh AFICIO MP C305SP Field Service Manual

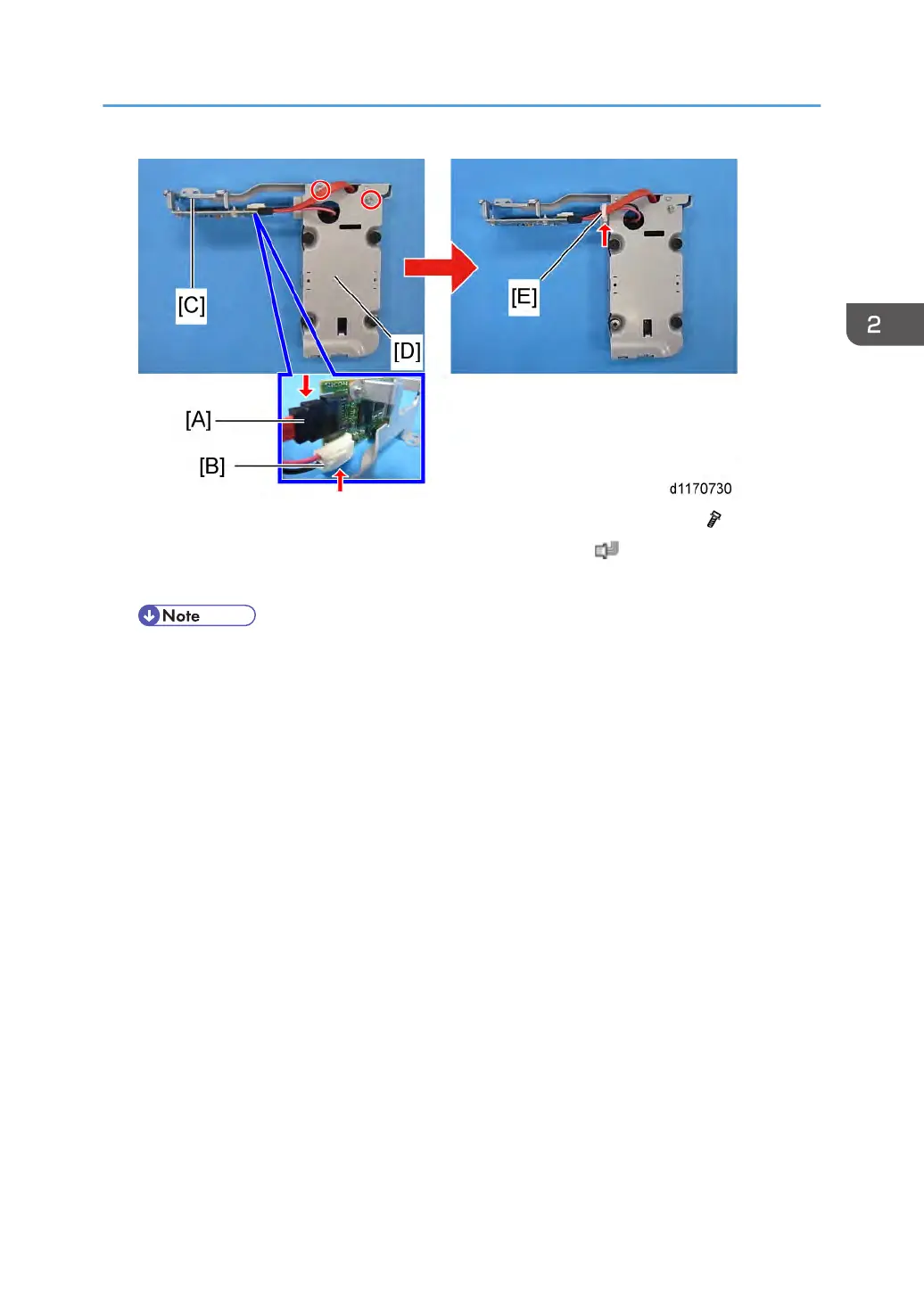

7. Attach the connection board with the bracket [C] to the HDD with the bracket [D] ( x 2).
8. Connect the SATA cable [A] and the power cable [B] to the HDD ( x 2).
9. Attach the cable clamp [E] to the HDD bracket and clamp the cables from the HDD.
• The power cable [B] should go through the hole in the HDD bracket.
HDD Option Type C305 (D656)
91
