Ricoh CL4000DN Quick Installation Guide

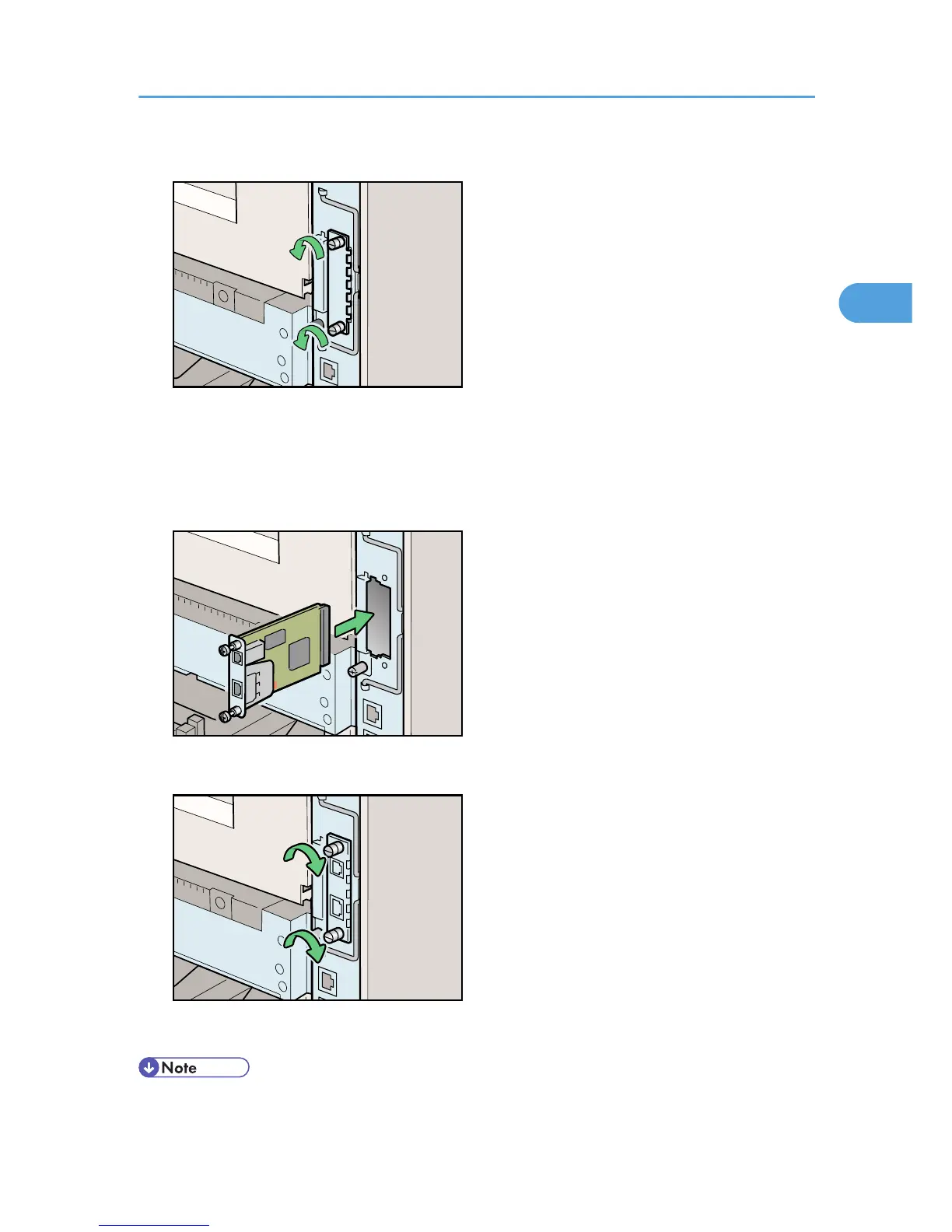

4. Remove the two screws and the slot cover of the Gigabit Ethernet board mounting bracket.
BMU028S
When the Gigabit Ethernet board is installed, the slot cover is no longer required. However, we
recommend you keep the cover for future use.
5. Attach the Gigabit Ethernet board to the controller board.
Insert the end of the Gigabit Ethernet board into the slot.
BMU041S
6. Fasten the Gigabit Ethernet board to the controller board with two screws.
BMU042S
Check the Gigabit Ethernet board is connected firmly to the controller board.
• Use a coin or similar object if the screws do not turn easily.
