Ricoh CL4000DN Quick Installation Guide

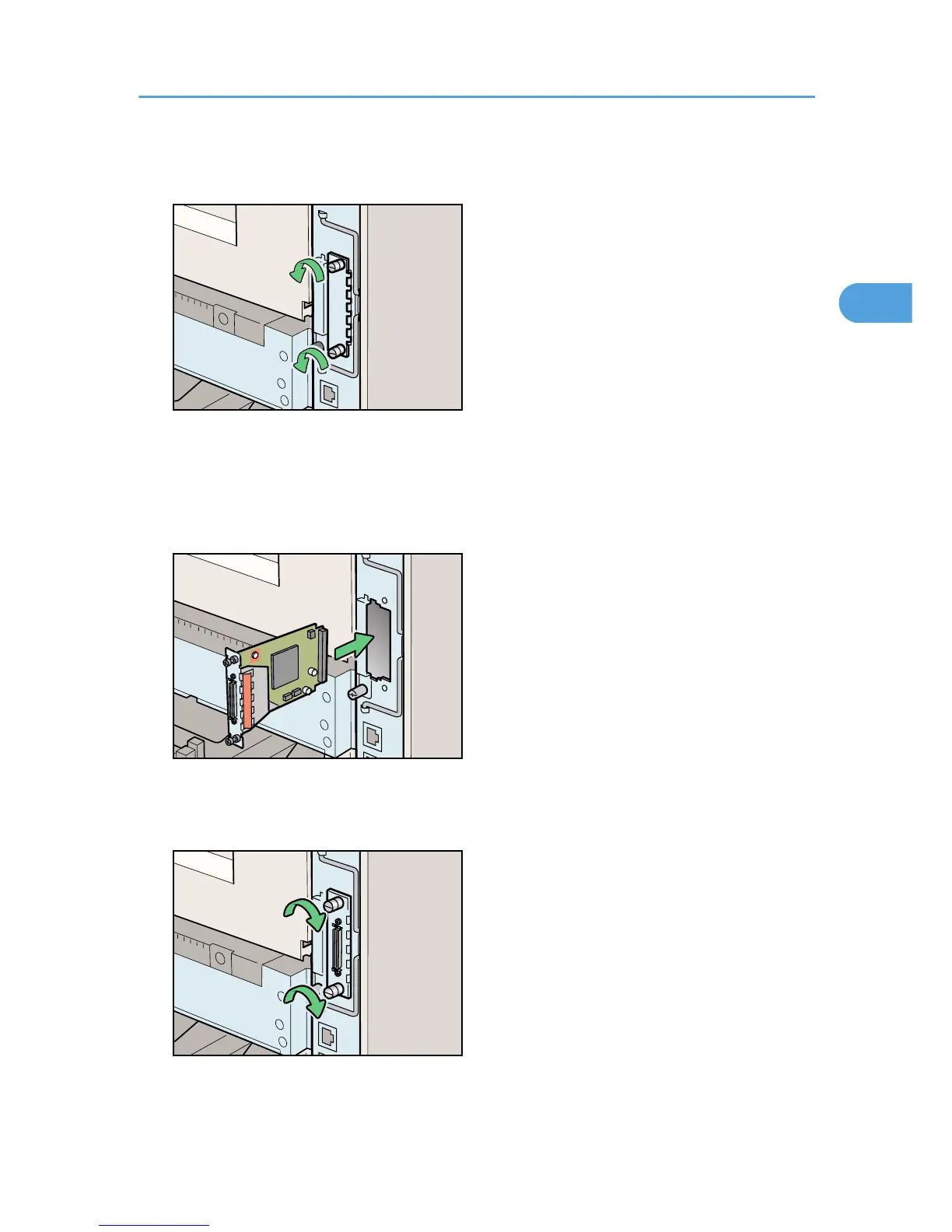

3. Remove the two screws and the slot cover of the IEEE 1284 interface board mounting
bracket.
BMU028S
When the IEEE 1284 interface board is installed, the slot cover is no longer required. However, we
recommend you keep the cover for future use.
4. Attach the IEEE 1284 interface board to the controller board.
Insert the end of the IEEE 1284 interface board into the slot.
BMU223S
Confirm that the IEEE 1284 interface board is firmly connected to the controller board.
5. Fasten the IEEE 1284 interface board to the controller board with two screws.
BMU224S
Check the IEEE 1284 interface board is connected firmly to the controller board.
Installing the Interface Units
45
2
