6.5 MASTER FEED
6.5.1 OVERVIEW
The master feed unit makes an image on the master and feeds the master to the
drum. (☛!: Digital Duplicators – Duplicating Process – Master Feeding)
Procedure
The machine feeds the master from the master roll [A].
↓
The thermal head [B] makes an image on the master.
↓
Clamper [C] opens. (The drum is at the master feed position.)
↓
The clamper clamps the master. At this time, the cutter [D] cuts the master.
↓
The master is wrapped around the drum [E].

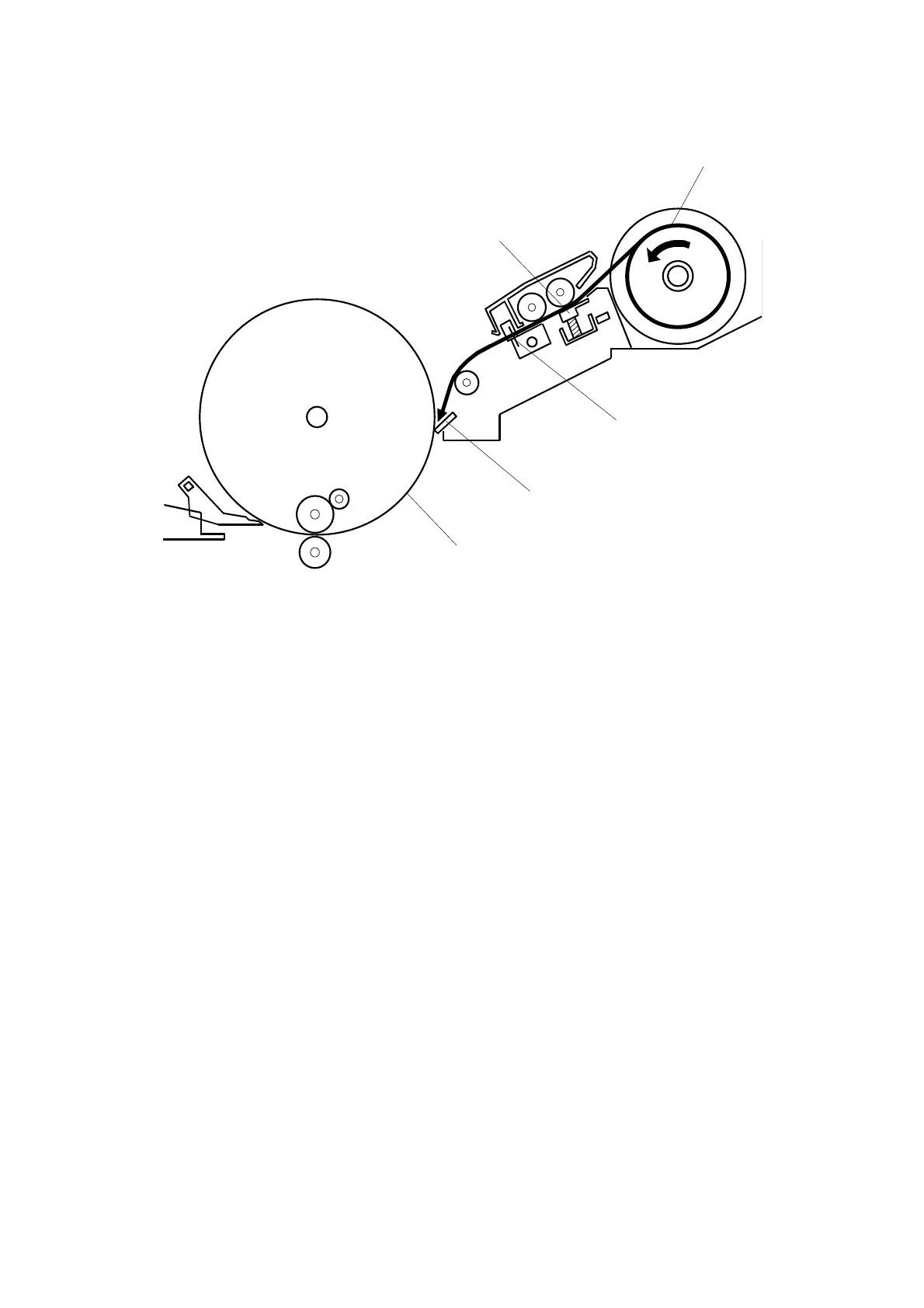

C238D052.WMF
[A]
[B]
[C]
[D]
[E]
