31 October 2001 PAPER FEED
3-15
Replacement
Adjustment
3.6 PAPER FEED
3.6.1 PICK-UP ROLLER / PAPER FEED ROLLER / FRICTION PAD
• Lower the paper table.

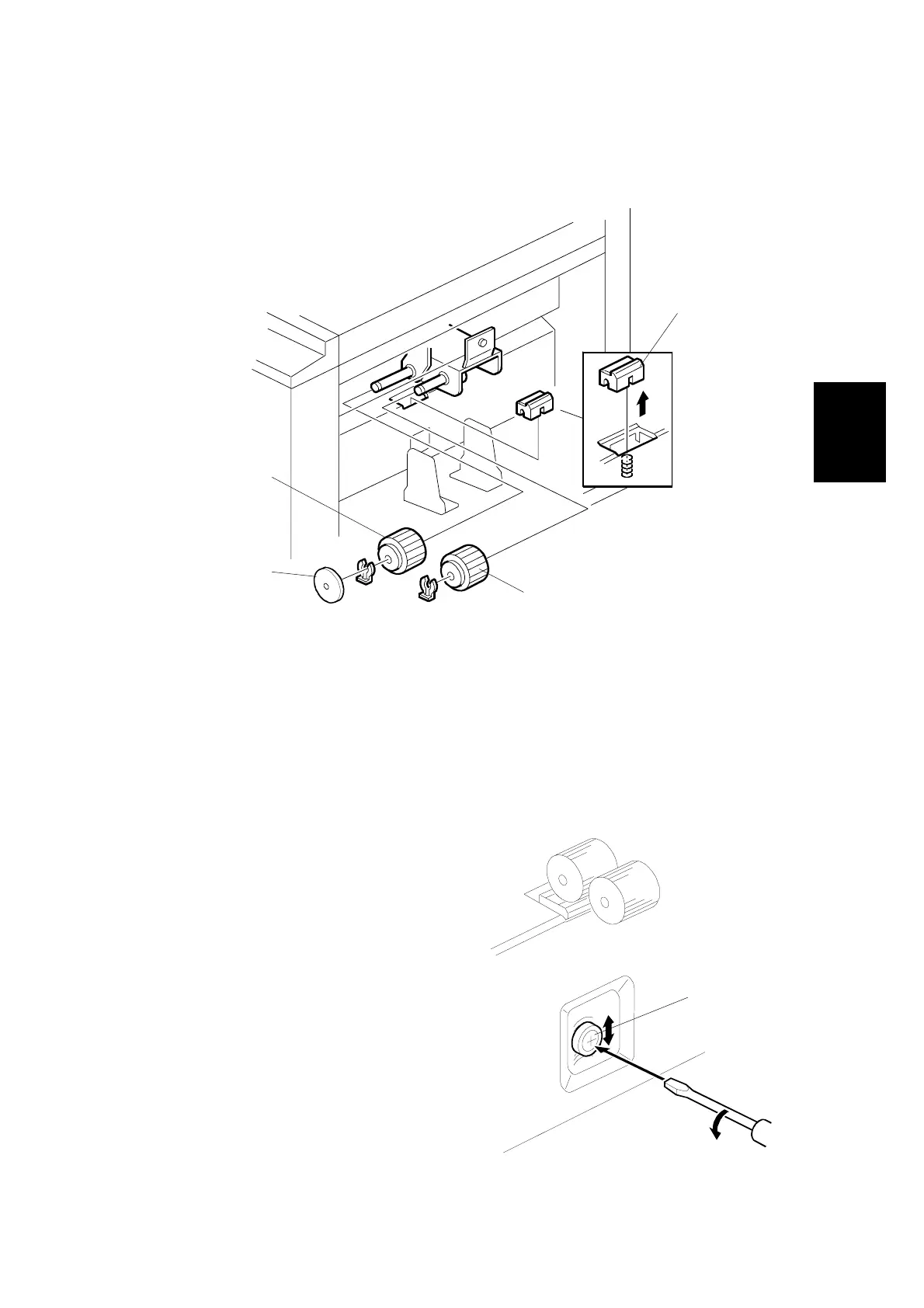

[A]: Pick-up roller ($ x 1)
[B]: Paper guide
[C]: Feed roller ($ x 1)
[D]: Friction pad
3.6.2 PAPER SEPARATION PRESSURE ADJUSTMENT
Purpose: To ensure that the friction pad
exerts sufficient pressure for smooth
printing paper separation.
Default: The next position to the top.
Adjust the paper separation pressure by
loosening and moving the adjusting screw
[A] up or down.
Moving up the screw ⇒ Increases the
paper separation pressure
Moving down the screw ⇒ Decreases the
paper separation pressure
Tighten the screw after the adjustment.
C238R024.WMF
C238R031.WMF
[A]
[B]
[C]
[D]
[A]
To Next Page
