Ricoh JP3000 - Paper Width Detection Board

PAPER FEED 31 October 2001
3-16

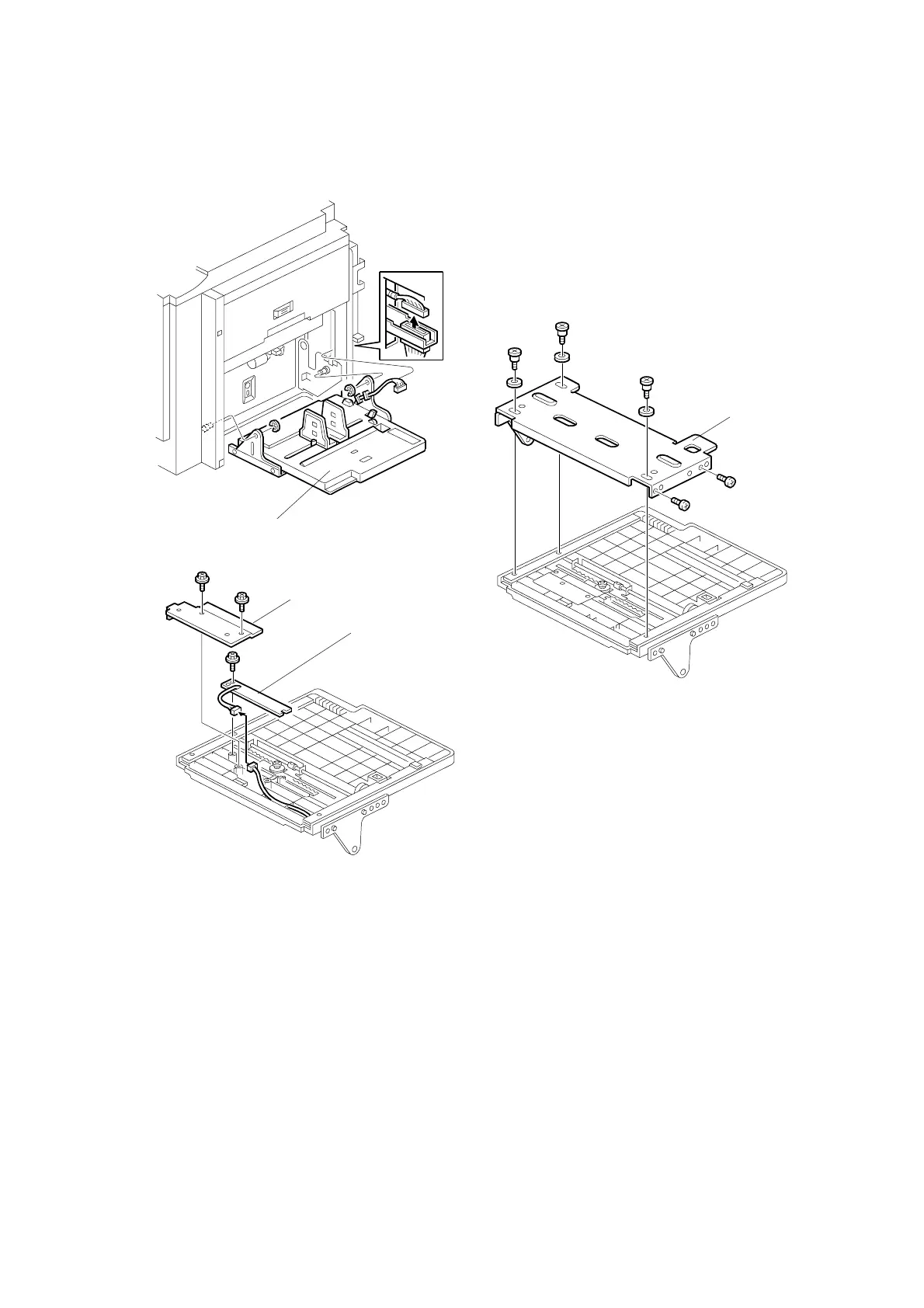

3.6.3 PAPER WIDTH DETECTION BOARD
• Lower the paper table.
[A]: Paper table (" x 1, # x 2)
[B]: Table cover (! x 5, 3 washers)
[C]: Sensor cover (! x 2)
[D]: Paper width detection board (" x 1, ! x 1)
