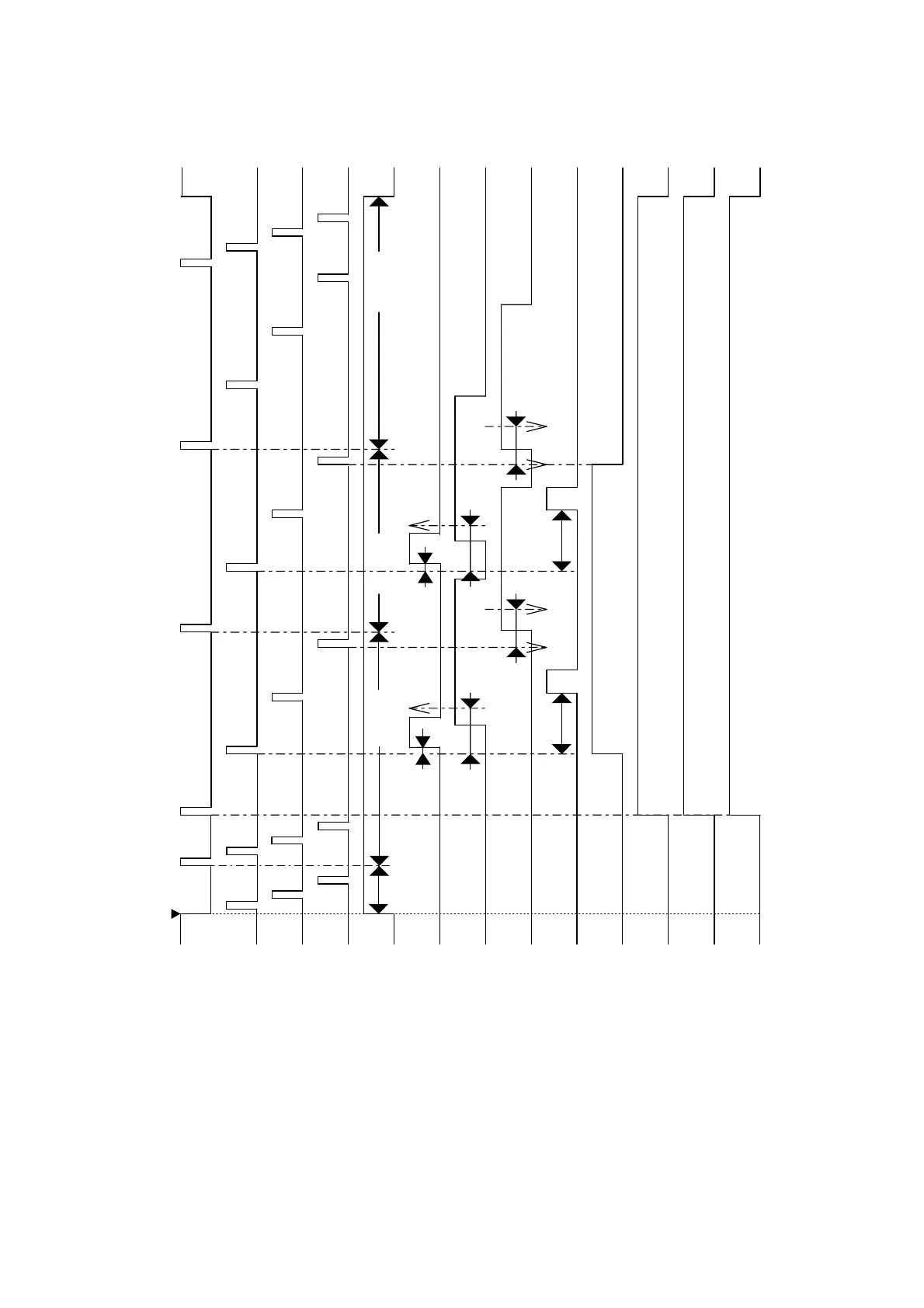

TIMING CHART 31 October 2001
6-42
6.9.3 PRINTING
Master eject position SN
Feed start timing SN
2nd feed timign SN
Paper exit timing SN
Main motor
Paper feed motor
Registration SN
Paper exit SN
Registration motor
Pressure release SOL
Paper delivery motor
Vacuum fan motor
Air knife fan motor
30 rpm
Check
Check Check
Check
60 rpm
75 rpm 30 rpm
Press the print key
X
X
YY
(1)
(2) (3)
(4)
(5)
(6)
C238D046.WMF
