PAPER FEED 31 October 2001
6-30

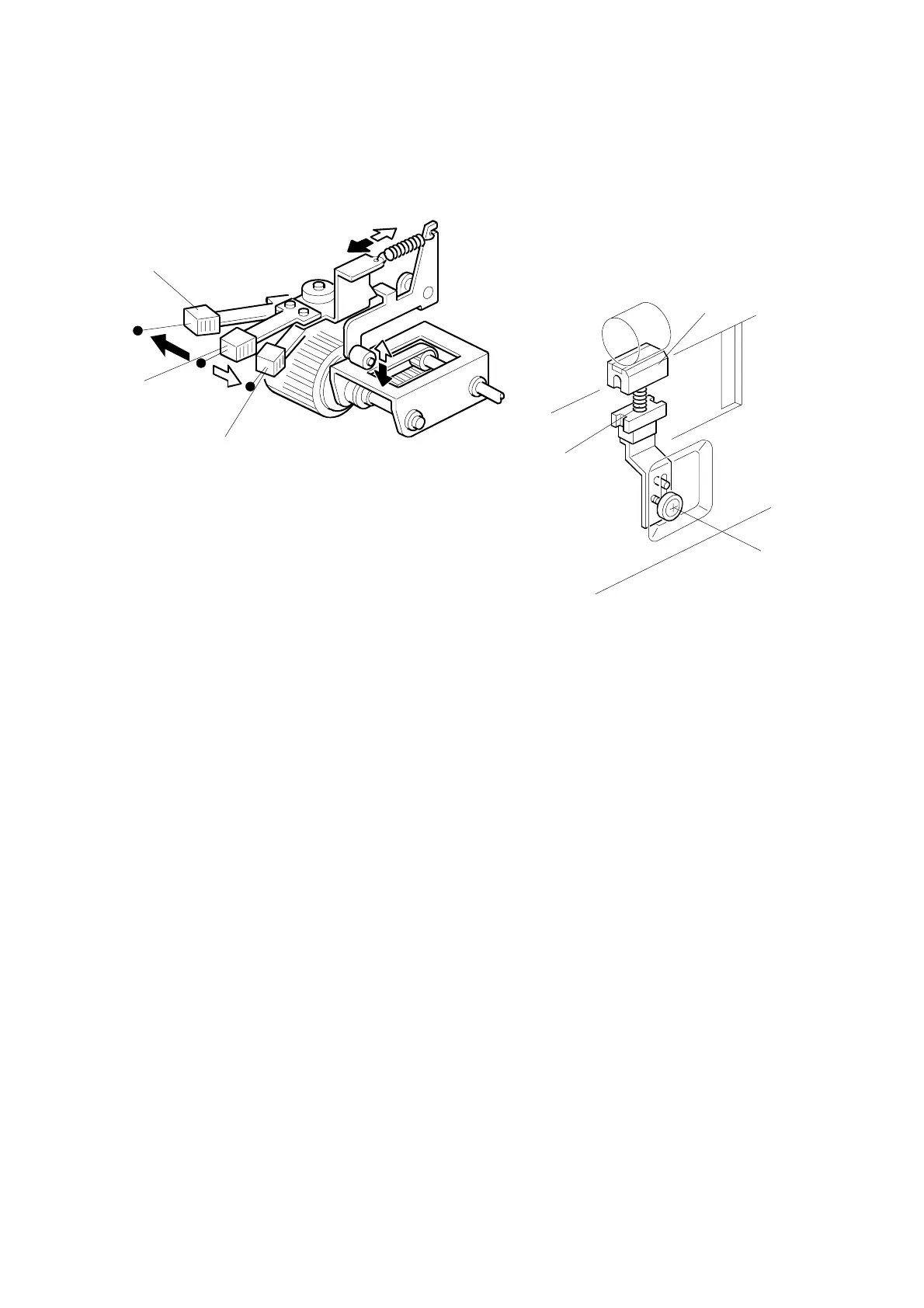

6.7.3 PAPER FEED / SEPARATION PRESSURE MECHANISM
[A]: Normal position
[B]: Thick paper position
[C]: Thin paper position
• The user can change the pick-up roller pressure by changing the position of the
pressure adjustment lever.
• If paper feed jams frequently occur, the lever should be moved to the left or the
right to adjust the pressure.
• If non-feed or multi-sheet feed problems still occur, the paper separation
pressure can also be adjusted. (This should be done by a technician; ☛3.6.2)
• By loosening then moving the screw [D] up or down, the spring [E], which applies
pressure to the friction pad block [F], moves up or down.
• The default position of the screw [D] is at the next to highest position.
