DRUM 31 October 2001
6-24

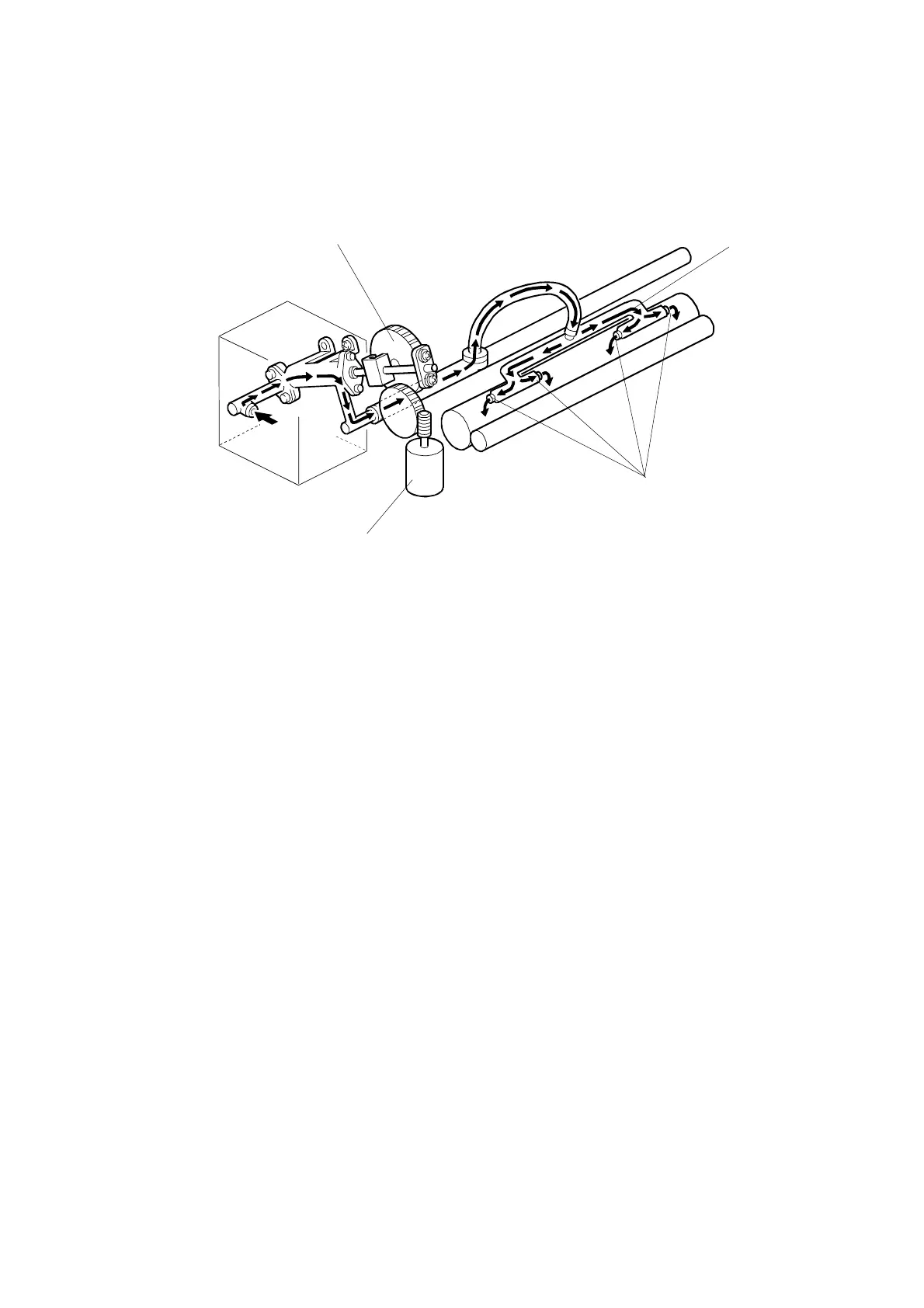

6.6.3 INK SUPPLY MECHANISM
Mechanism
Ink pump motor [A]
↓
Gears [B]
↓
Gear rotation converted into piston motion.
↓
Supplies ink from the ink cartridge to the ink roller via the pump, the shaft, the tube,
and the ink distributor pipes [C]. Ink drops through 4 openings [D] in the ink
distributor onto the ink roller.
NOTE: The ink pump is outside the drum in this model.
C238D040.WMF
[A]
[B]
[C]
[D]
