Ricoh JP3000 - Master Feed Unit; Master Making Unit; Thermal Head Procedures

31 October 2001 MASTER FEED
3-11
Replacement
Adjustment
3.5 MASTER FEED
3.5.1 MASTER MAKING UNIT

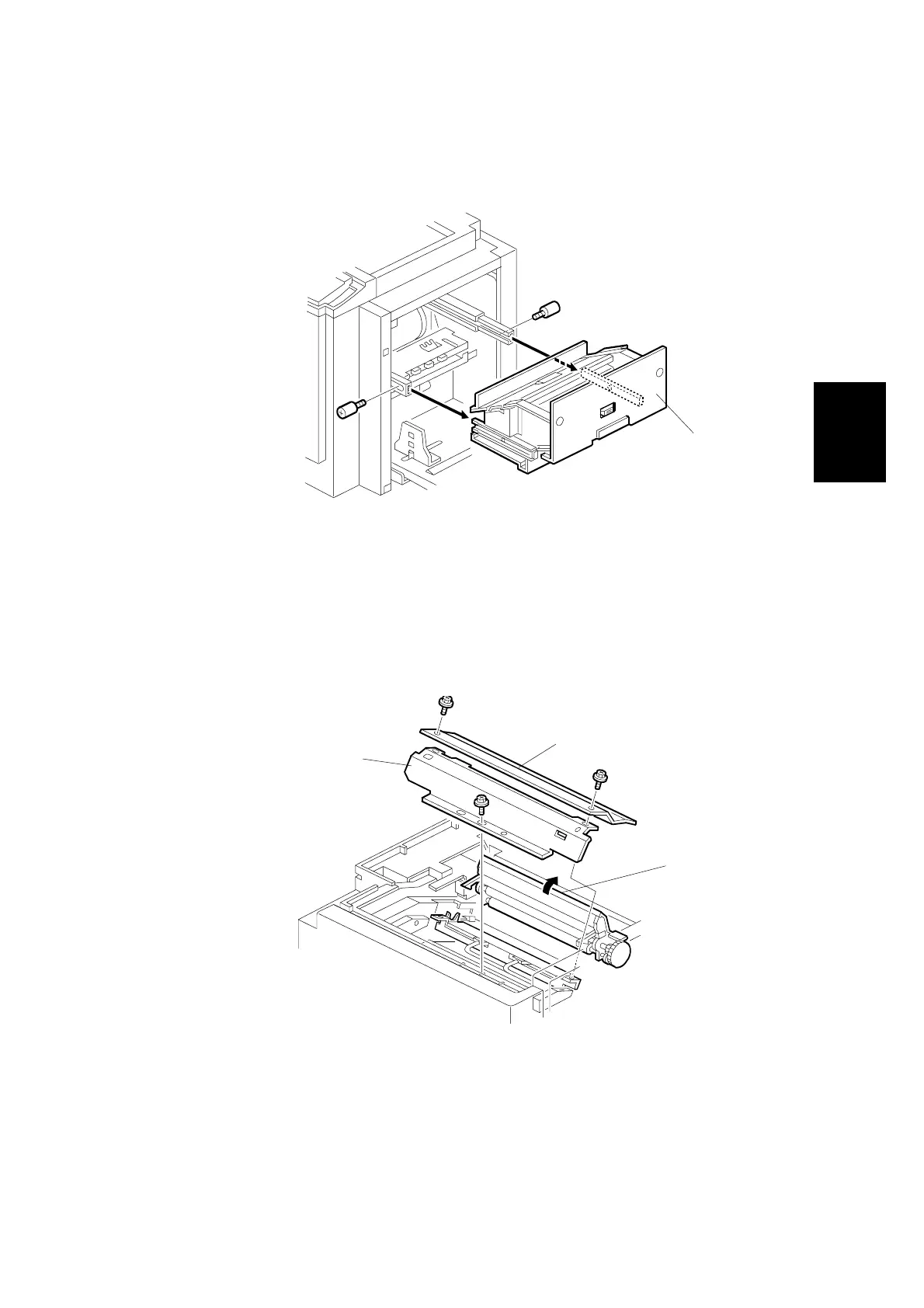

[A]: Master making unit (! x 2)
3.5.2 THERMAL HEAD
• Master making unit (☛ 3.5.1)
• Open the platen roller unit [1].
[A]: T/H upper cover (! x 2)
[B]: T/H side cover (! x 1)
C238R010.WMF
C238R049.WMF
[A]
[A]
[B]
[1]
