31 October 2001 PRINTING
3-17
Replacement
Adjustment
3.7 PRINTING
3.7.1 PRESS ROLLER
!
CAUTION
Take care to avoid possible injury. If the printing pressure release arms
disengage, the press roller will be pulled upwards suddenly.
• Remove the drum.

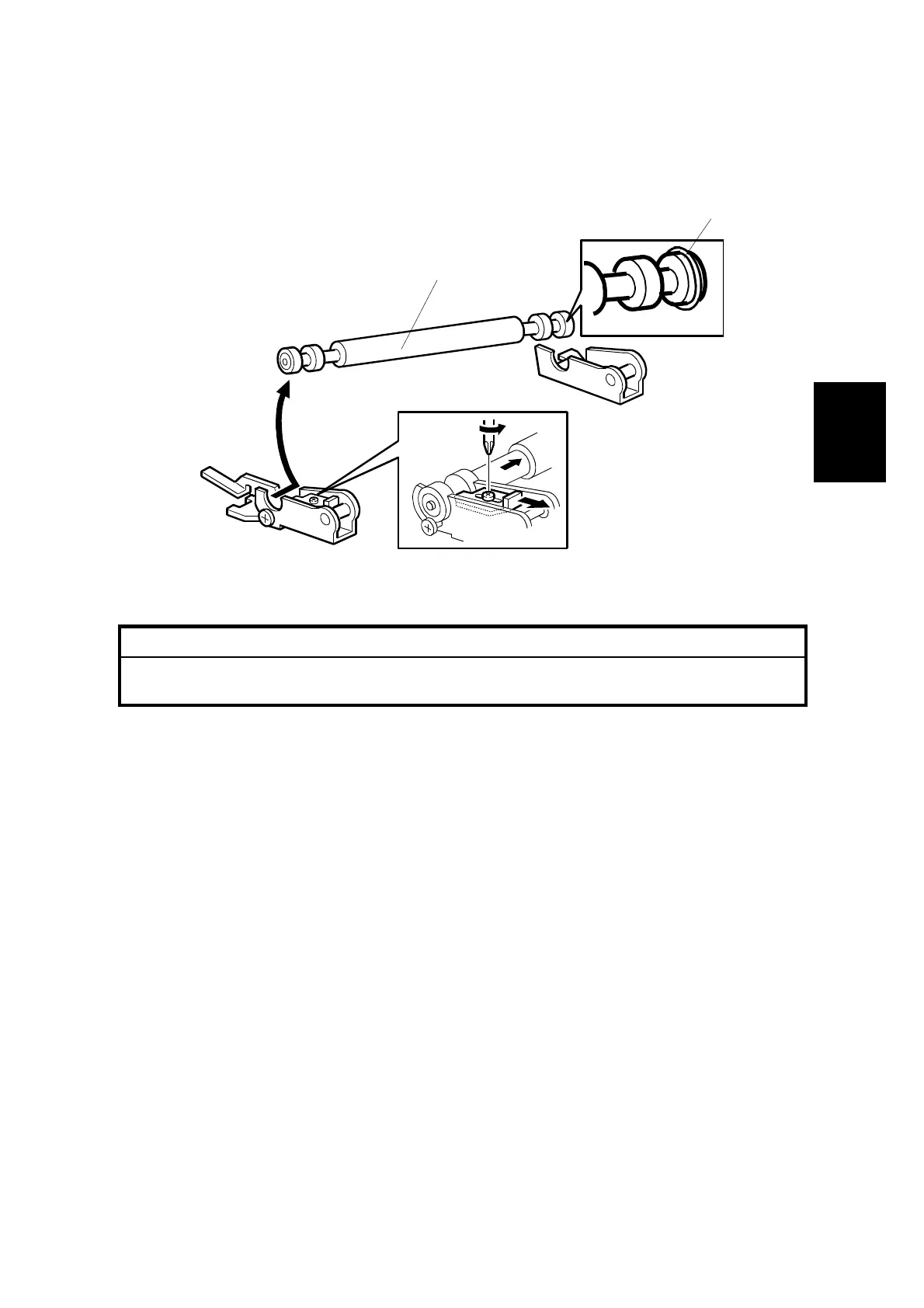

[A]: Press roller (! x 1)
The bearings on the rear and front differ. During installation, ensure that the
bearing with the stopper [B] is positioned towards the rear of the machine.
C238R037.WMF
[A]
[B]
