SCANNER 31 October 2001

3-6

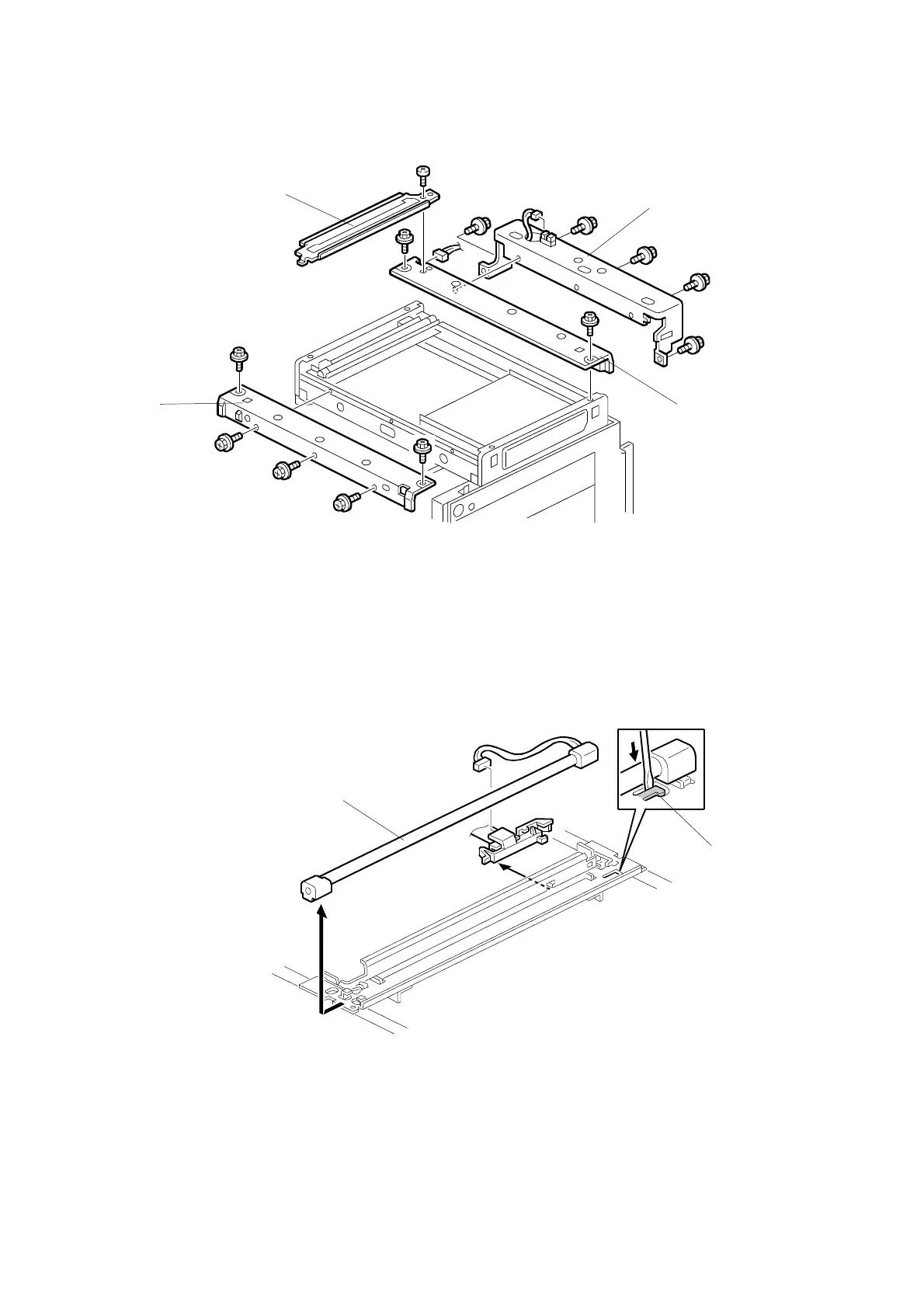

3.3.4 EXPOSURE LAMP (XENON LAMP)

• Move the first scanner next to the opening in the frame.

• Exposure glass (☛ 3.3.1)

• [1]: Left stay (☛ 3.3.3)

[A]: Platen base (" x 1, ! x 5)

[B]: Rear frame (" x 1, ! x 2)

[C]: Front frame (! x 5)

[D]: Exposure lamp (" x 1)

NOTE: After installing the lamp, press the lamp holder [E] up to the original

position so that it can hold the lamp properly.

C238R044.WMF

C238R045.WMF

[A]

[B][C]

[1]

[D]

[E]
