Ricoh JP3000 - Paper Delivery; Paper Delivery Unit; Delivery Belt; Paper Exit Sensor

31 October 2001 PAPER DELIVERY
3-29
Replacement
Adjustment

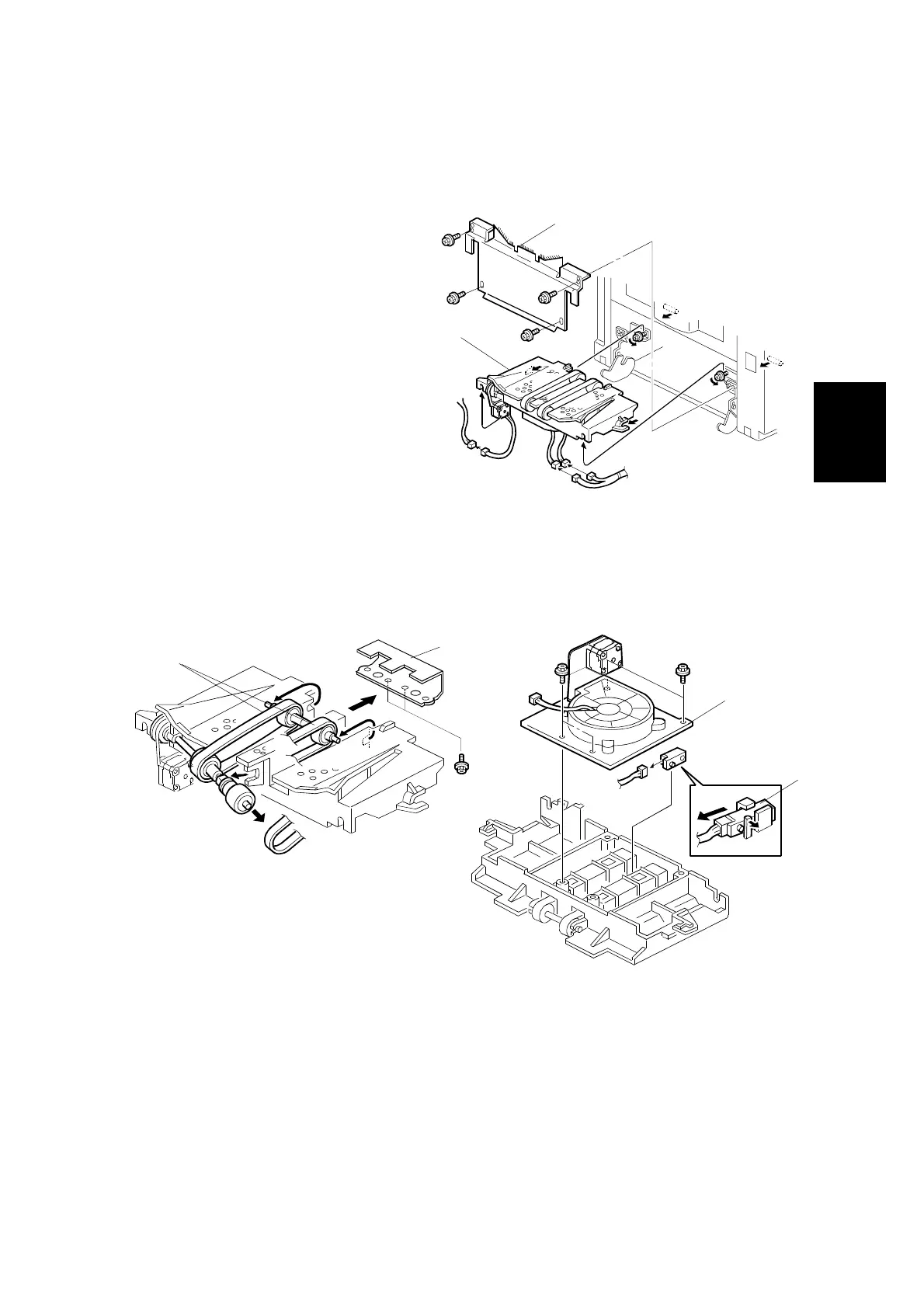

3.9 PAPER DELIVERY
3.9.1 PAPER DELIVERY UNIT
[A]: Paper delivery cover (! x 4)
[B]: Paper delivery unit (" x 3, ! x
2)
3.9.2 DELIVERY BELT / PAPER EXIT SENSOR
• Paper delivery unit (☛ 3.9.1)
[A]: Paper guide (! x 2)
[B]: Delivery belts
[C]: Vacuum fan motor (" x 1, ! x 4)
[D]: Paper exit sensor (" x 1)
C238R027.WMF
C238R036.WMF
C238R035.WMF
[A]
[B]
[C]
[D]
[A]
[B]
