Laser Optics
SM 4-13 M095/M096/M099/M100
Replacement
and
Adjustment

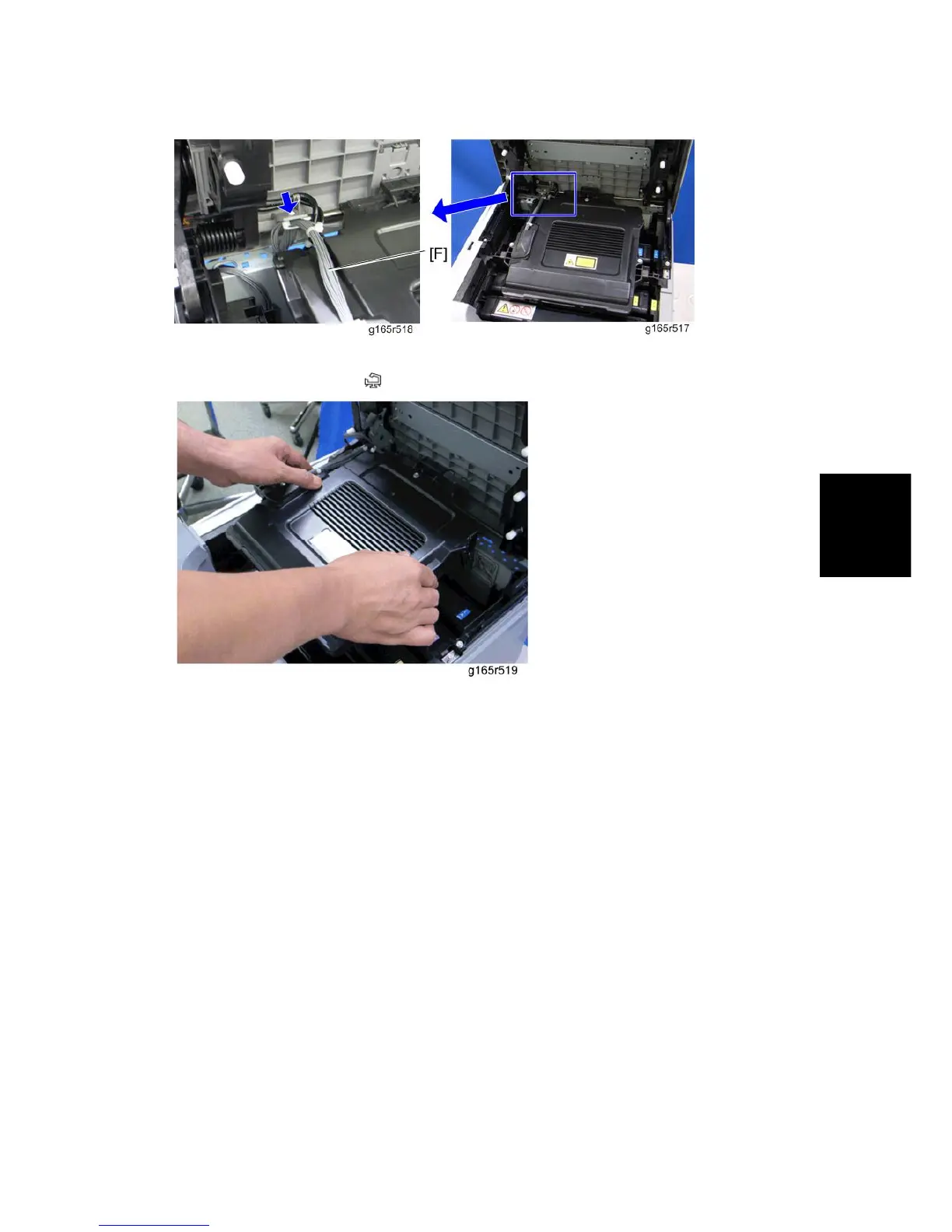

10. Take out the harnesses [F] (
x 1).
11. Remove the laser optics housing unit.
