Ricoh M095 - Page 99

Electrical Components
SM 4-59 M095/M096/M099/M100
Replacement
and
Adjustment

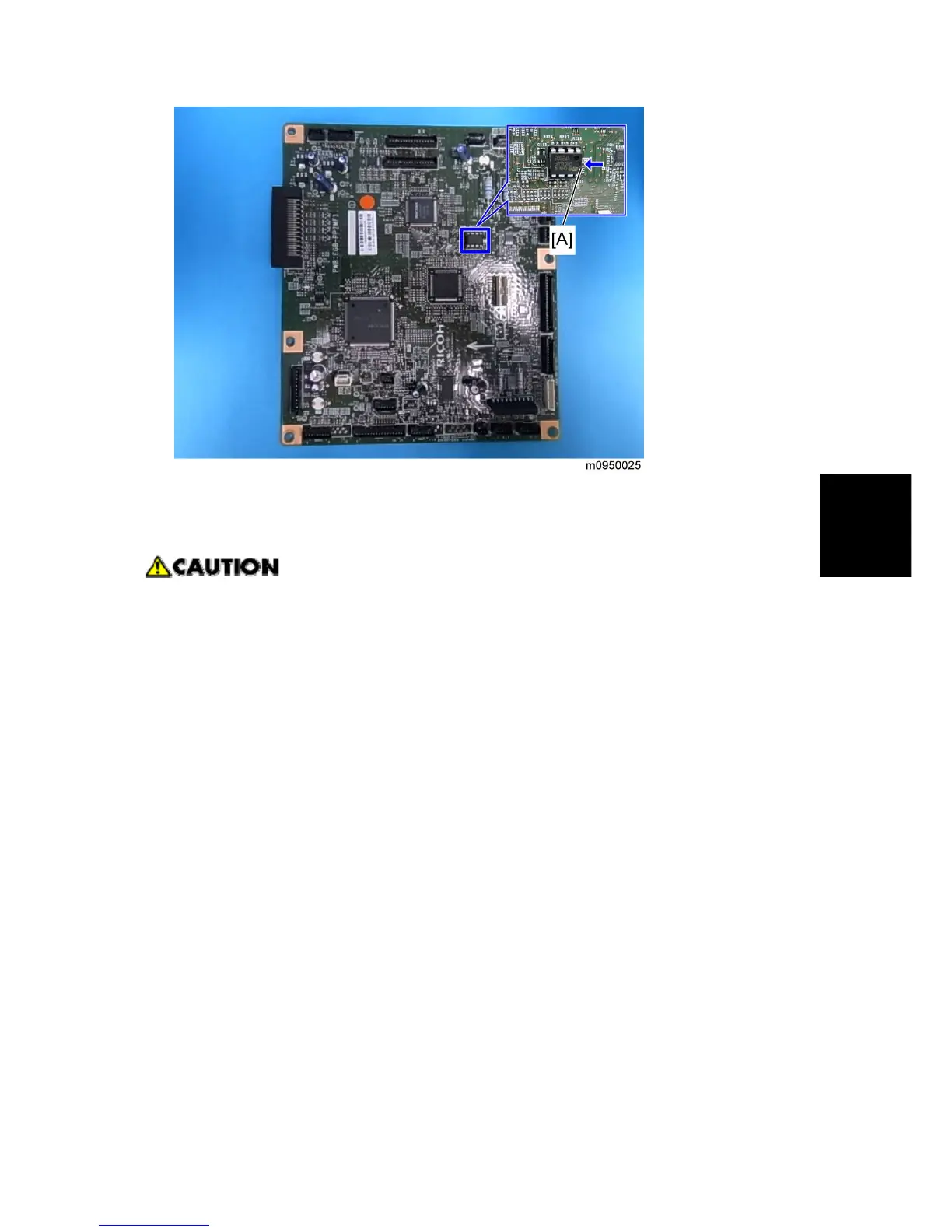

2. Install it on the new EGB with the mark [A] pointing to the right side of the board after you
replace the EGB.
3. Replace the EEPROM if the EEPROM on the old EGB is defective.
 Keep the EEPROM away from objects that can cause static electricity. Static electricity
can damage EEPROM data.
 Make sure that the EEPROM is correctly installed on the EGB.
