Ricoh M281 Series - RIGHT UPPER COVER

Exterior Covers (MP 501/601)
D255/D256/M281/M282 4-20 SM
4.6.3 RIGHT UPPER COVER
1. Remove the rear left stay. (page 4-37)

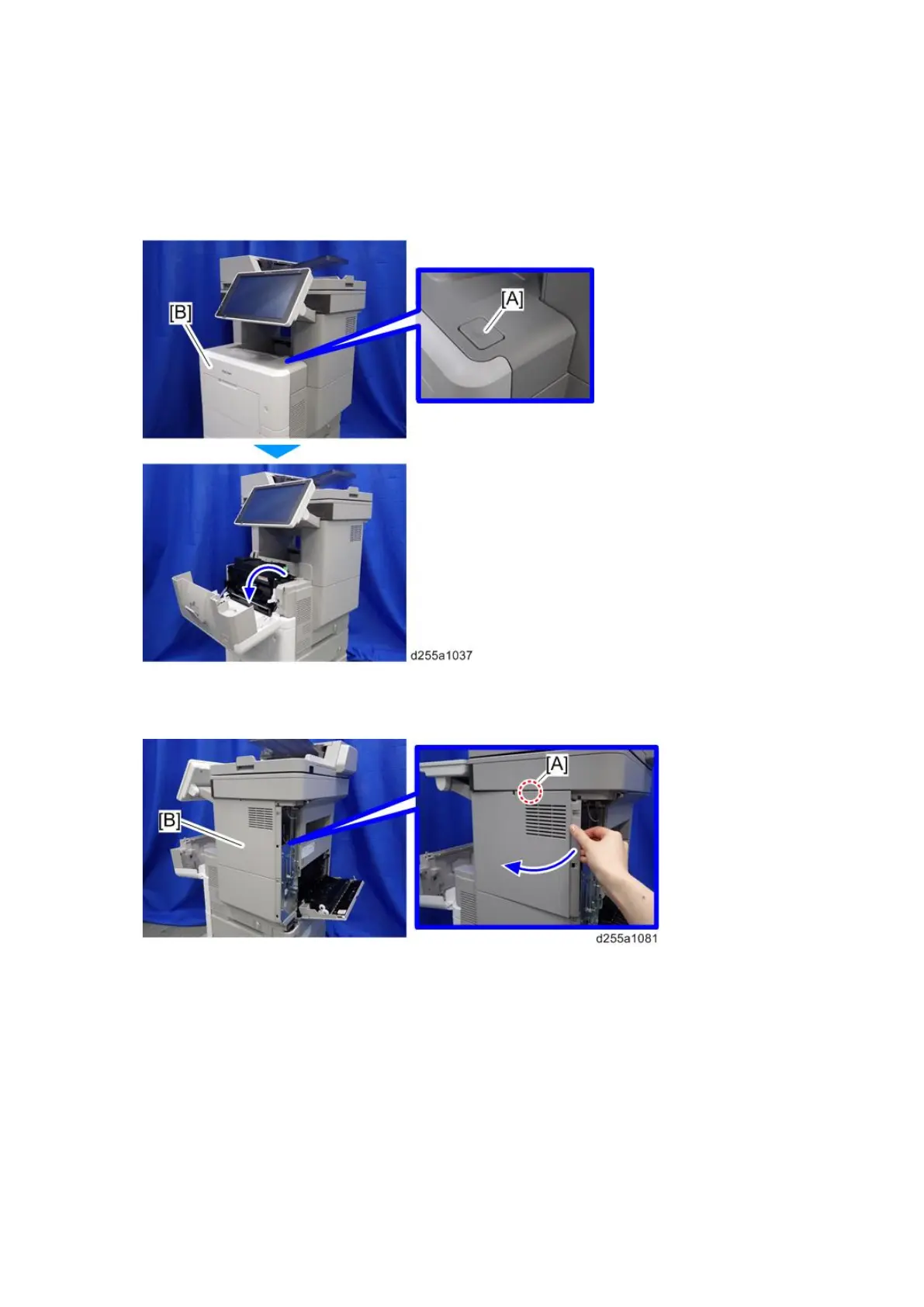

2. Push the button [A] and open the front cover [B].
3. Release the hook [A] of the right upper cover [B] by opening the cover in the direction
of the arrow.
